INSTALLING THE PRINTER DRIVER / PC-FAX DRIVER
3

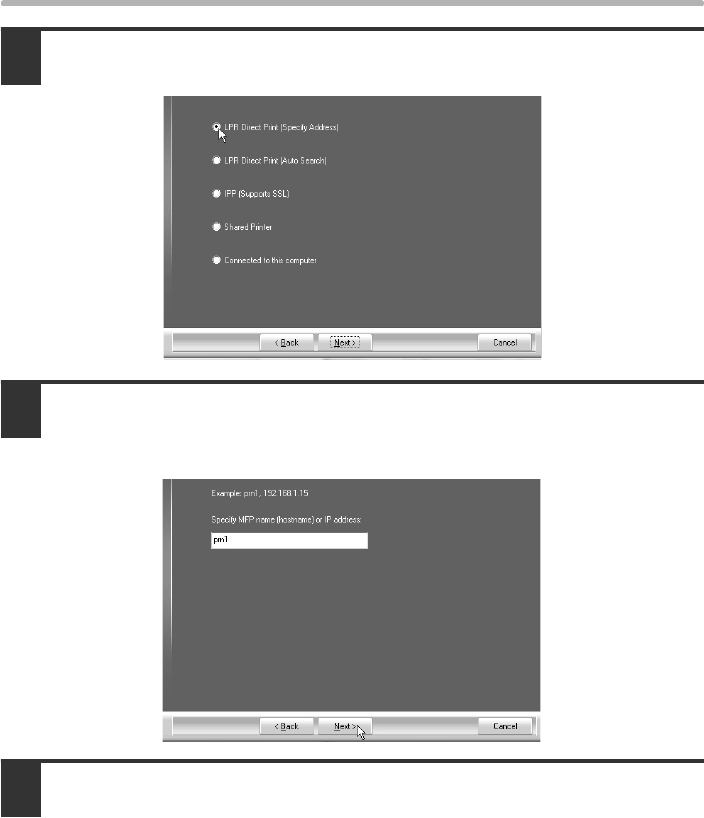

When you are asked how the printer is connected, select [LPR Direct
Print (Specify Address)] and click the [Next] button.
4
Enter the name (host name) or IP address of the machine and click
the [Next] button.
☞ Checking the IP address of the machine (page 7)
5
When the model selection window appears, select the model name of
your machine and click the [Next] button.
!mxc381_us_ins.book 16 ページ ２００８年８月１９日 火曜日 午前１０時４２分
