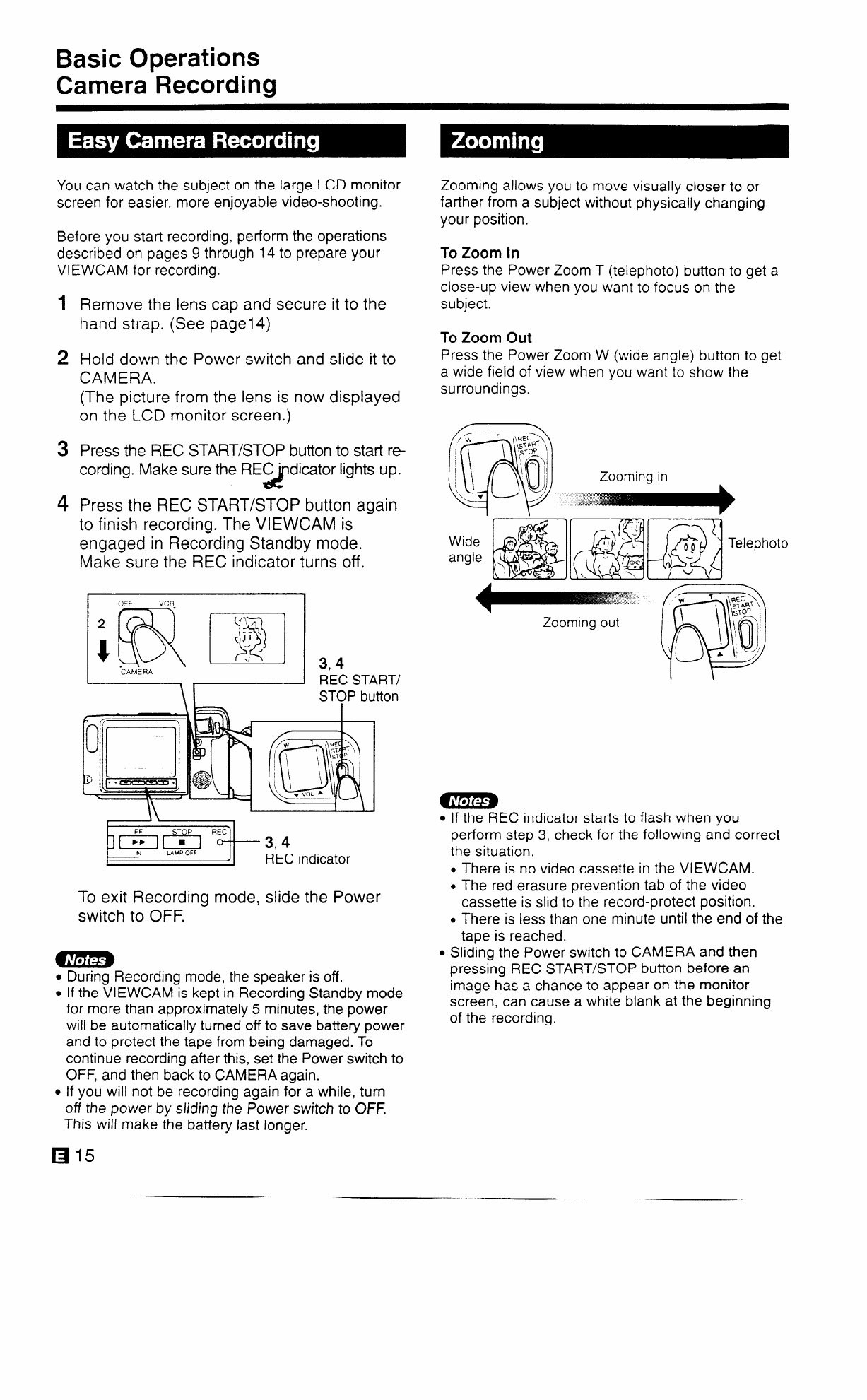

Basic Operations

Camera Recording

You can watch the subject on the large LCD monitor

screen for easier, more enjoyable video-shooting.

Before you start recording, perform the operations

described on pages 9 through 14 to prepare your

VIEWCAM for recording.

1 Remove the lens cap and secure it to the

hand strap. (See page14)

2 Hold down the Power switch and slide it to

CAMERA.

(The picture from the lens is now displayed

on the LCD monitor screen.)

3 Press the REC START/STOP button to star-t re-

cording. Make sure the REC *

dicator lights up.

4 Press the REC START/STOP button again

to finish recording. The VIEWCAM is

engaged in Recording Standby mode.

Make sure the REC indicator turns off.

374

REC START/

STOP button

To exit Recording mode, slide the Power

switch to OFF.

l During Recording mode, the speaker is off.

l If the VIEWCAM is kept in Recording Standby mode

for more than approximately 5 minutes, the power

will be automatically turned off to save battery power

and to protect the tape from being damaged. To

continue recording after this, set the Power switch to

OFF, and then back to CAMERA again.

l If you will not be recording again for a while, turn

off the power by sliding the Power switch to OFF.

This will make the battery last longer.

Zooming allows you to move visually closer to or

farther from a subject without physically changing

your position.

To Zoom In

Press the Power Zoom T (telephoto) button to get a

close-up view when you want to focus on the

subject.

To Zoom Out

Press the Power Zoom W (wide angle) button to get

a wide field of view when you want to show the

surroundings.

l If the REC indicator starts to flash when you

perform step 3, check for the following and correct

the situation.

l There is no video cassette in the VIEWCAM.

l The red erasure prevention tab of the video

cassette is slid to the record-protect position.

l There is less than one minute until the end of the

tape is reached.

l Sliding the Power switch to CAMERA and then

pressing REC START/STOP button before an

image has a chance to appear on the monitor

screen, can cause a white blank at the beginning

of the recording.
