CD-MPS700

3 – 3

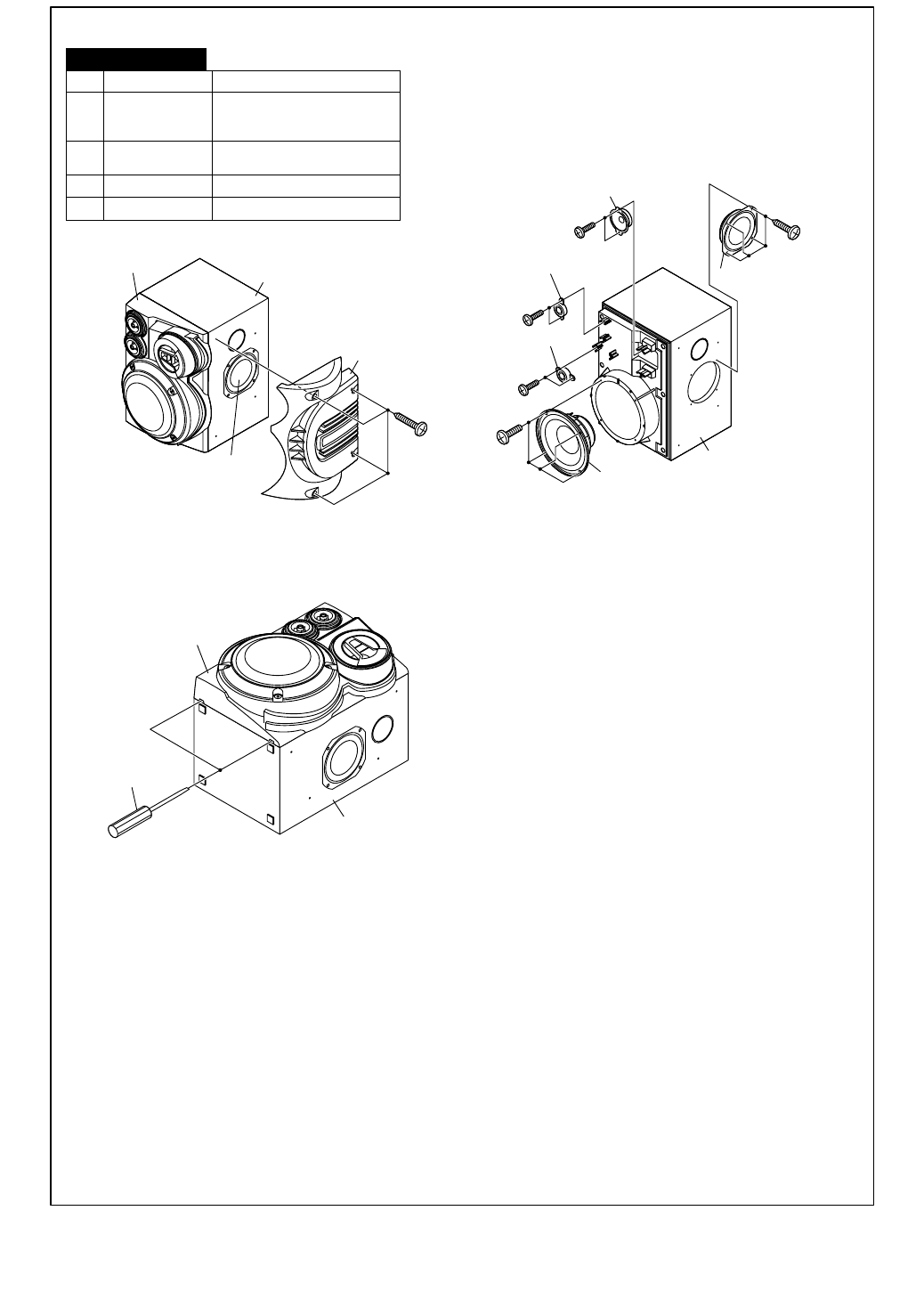

1 Passive Radiator 1. Screw ...................... (A1) x4

2. Side Panel .............. (A2) x1

3. Screw ...................... (A3) x4

2 Woofer 1. Front Panel ............. (B1) x1

2. Screw ...................... (B2) x4

3 Tweeter 1. Screw ...................... (C1) x2

4 Super Tweeter 1. Screw ...................... (D1) x4

STEP

REMOVAL PROCEDURE

CP-MPS700

(A1)x4

φ4x35mm

(A2)x1

Speaker Box

Passive Radiator

Front Panel

Speaker Box

(B1)x1

Screwdriver

Driver should

be pried away

from Speaker Box.

(A3)x4

φ4x16mm

(B2)x4

φ4x16mm

(D1)x2

φ3x12mm

Passive Radiator

Woofer

Speaker Box

Super Tweeter

Tweeter

(D1)x2

φ3x12mm

(C1)x2

φ3x12mm

Super Tweeter
