MZ3500

4-12. Read/write from the Z-80 to V RAM

Read/write of the Model 3500 V-RAM is done via the

UPD7220GDC. There are two methods used to read/write

data. The method (1) is used for the model 3500.

(1) Read/write via the 16 byte FIFO.

(2) Read/write of V-RAM in the DMA mode without

intervention of the FIFO.

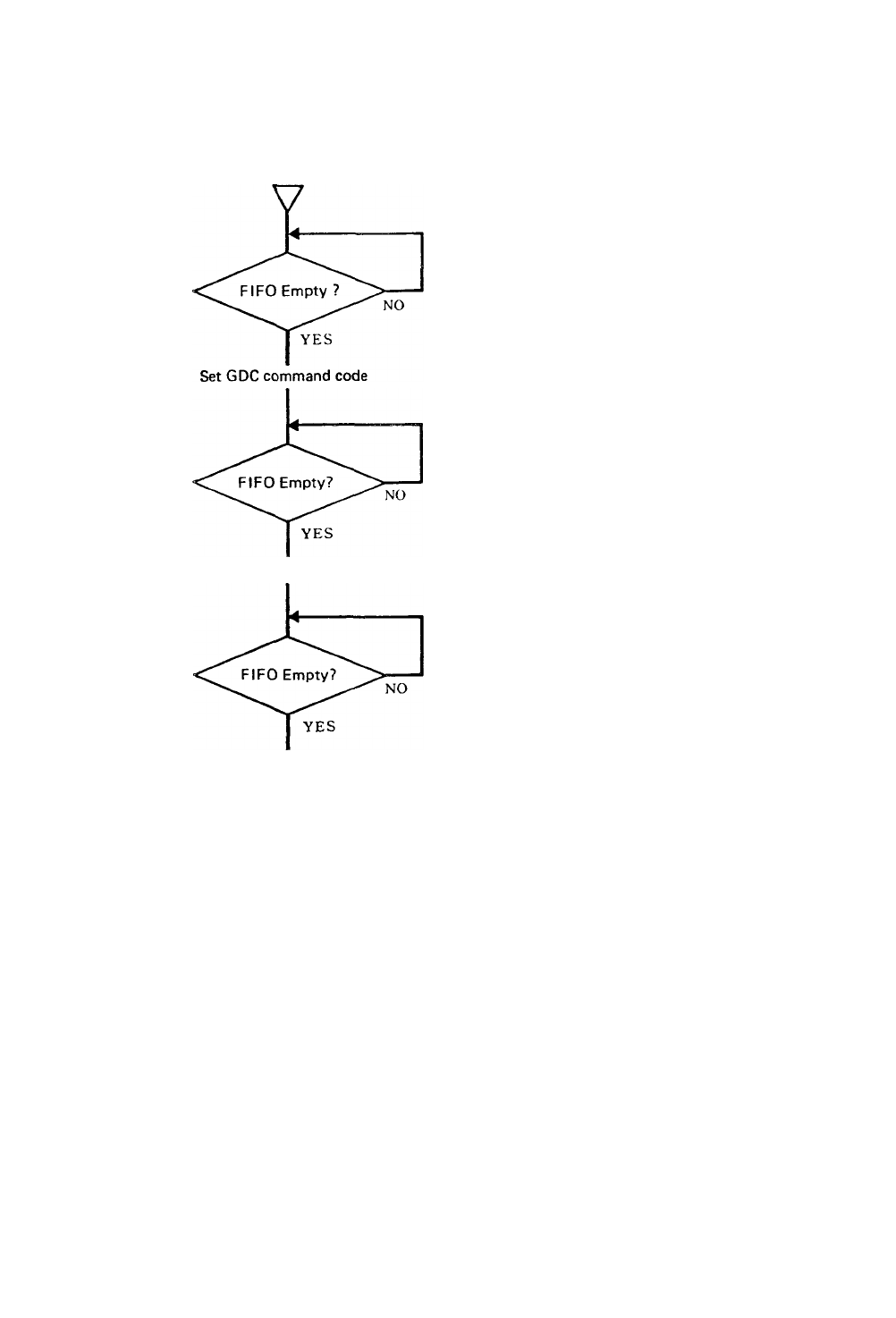

¡Outline of the read/write data via the FIFO;

Set parameter for the command

Set parameter for the command.

\ Method used to give a command

to the GDC.

Command must be given to the GDC in the same manner.

On next page is the program of the above flowchart.

- 48 ■
