AR-5220 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4-5

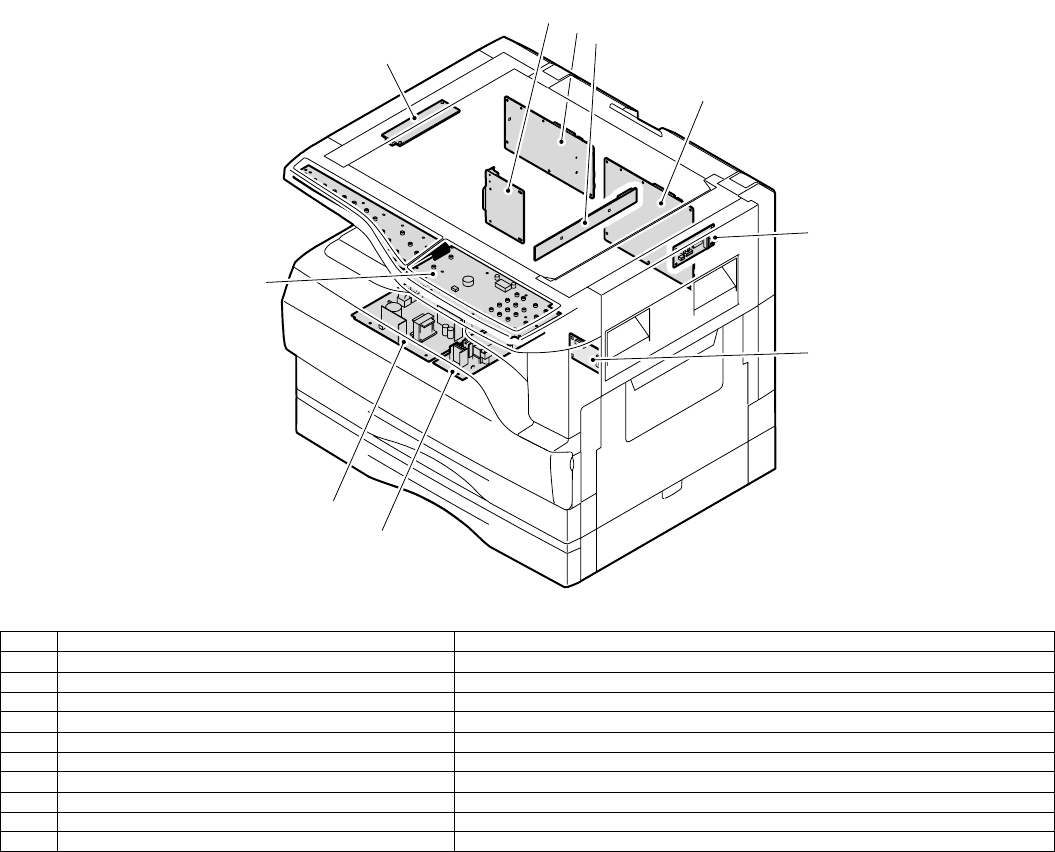

6. PWB unit

No. Name Function operation

1 Copy lamp Inverter PWB Copy lamp control

2 I / F PWB USB1.1, IEEE1284 I/F

3 CCD sensor PWB Image scanning

4 Main control PWB Main control PWB

5 Tray PWB Shifter motor control

6 IMC2 PWB Electronic sort, USB2.0 << Option:AR-EB7>>

7 2nd cassette PWB 2nd cassette control

8 High voltage PWB High voltage control

9 Power PWB AC power input/DC power control

10 Operation main PWB Operation panel input/Display, operation panel section control

( !"#$%
