Installation

Network Installation

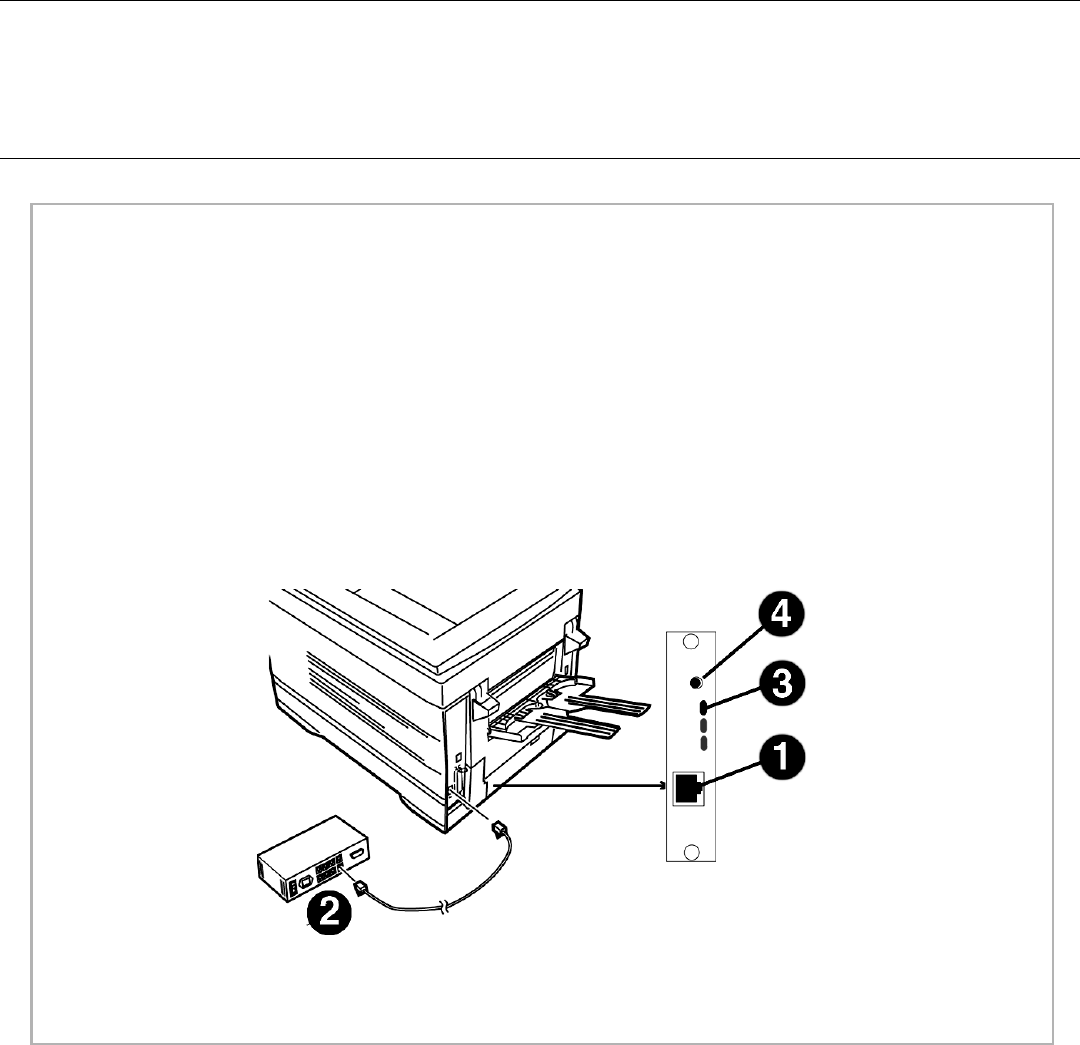

Connect to the Network Port

□ Turn the printer off.

□ Connect your Ethernet cable to the network port on the print server (1).

□ Connect the other end of the cable to the network port (2).

□ Turn the printer on and wait for the print server status light (3) to stop blinking.

□ Press the Test button (4) on the print server. A configuration sheet prints.

This sheet contains information you need to set up the printer on your network.

PC_connect_1.tif

No Ethernet® cable is supplied with the printer. Use an Ethernet cable with two twisted wire pairs and an

RJ45 plug.
