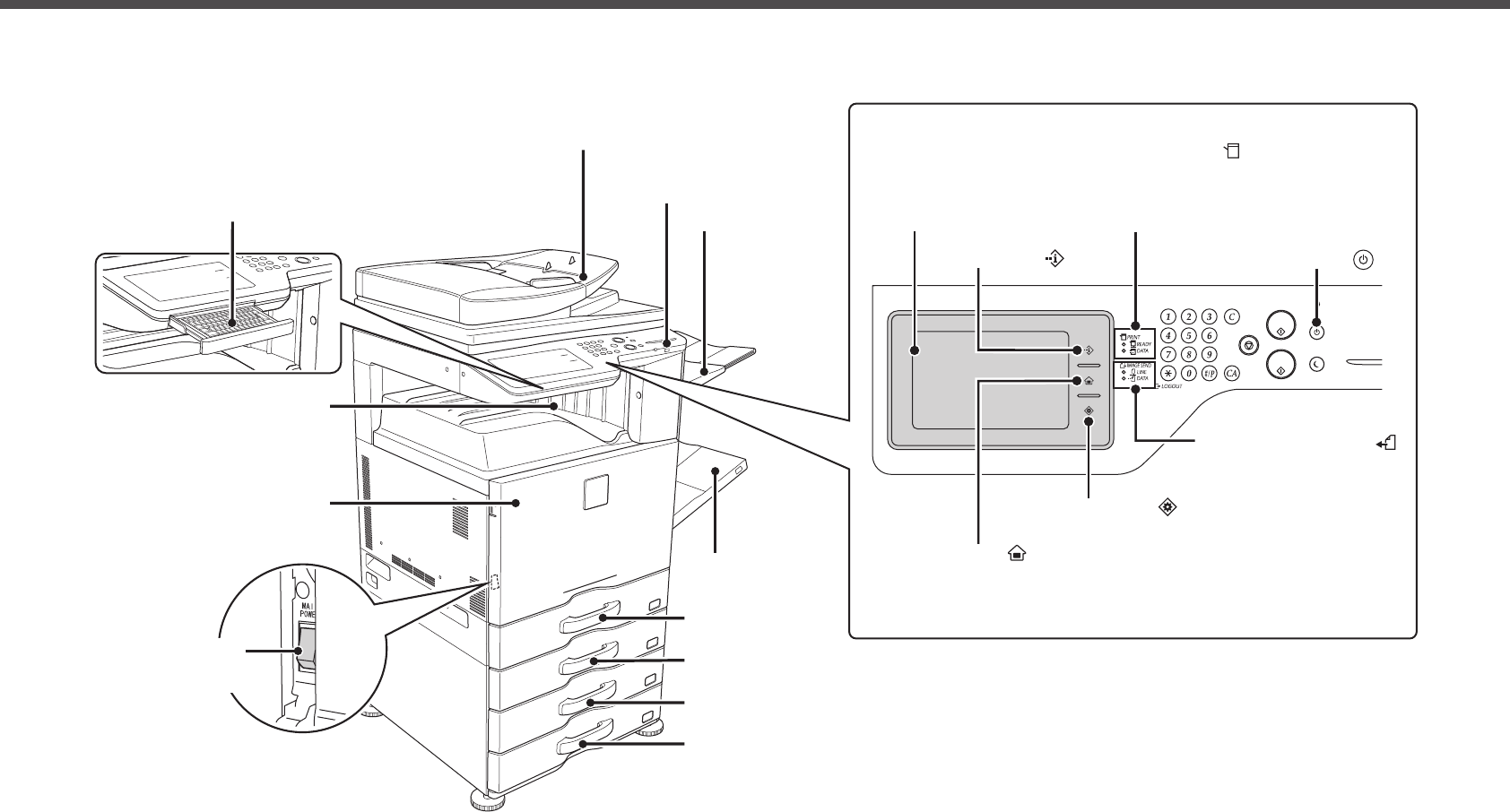

PART NAMES

Main power

switch

Tray 1

Tray 2 (when paper feed tray is installed)*

Tray 3 (when paper feed tray is installed)*

Tray 4 (when paper feed tray is installed)*

Bypass tray

Front cover

Output tray

(Centre tray)

Automatic document feeder

* Peripheral device.

USB connector (A type)

Exit tray unit (right tray)*

Keyboard*

[POWER] key (

)

IMAGE SEND mode indicators (

)

•LINE indicator

This lights up during transmission or

reception of a fax or Internet fax. This also

lights during transmission of an image in

scan mode.

•DATA indicator

This blinks when a received fax or Internet

fax cannot be printed because of a

problem such as out of paper.

This lights up when there is a transmission

job that has not been sent.

Operation panel

[JOB STATUS] key (

)

PRINT mode indicators (

)

•READY indicator

Print jobs can be received when this indicator is lit.

•DATA indicator

This blinks while print data is being received and lights steadily

while printing is taking place.

Touch panel

[HOME] key (

)

[SYSTEM SETTINGS] key (

)
