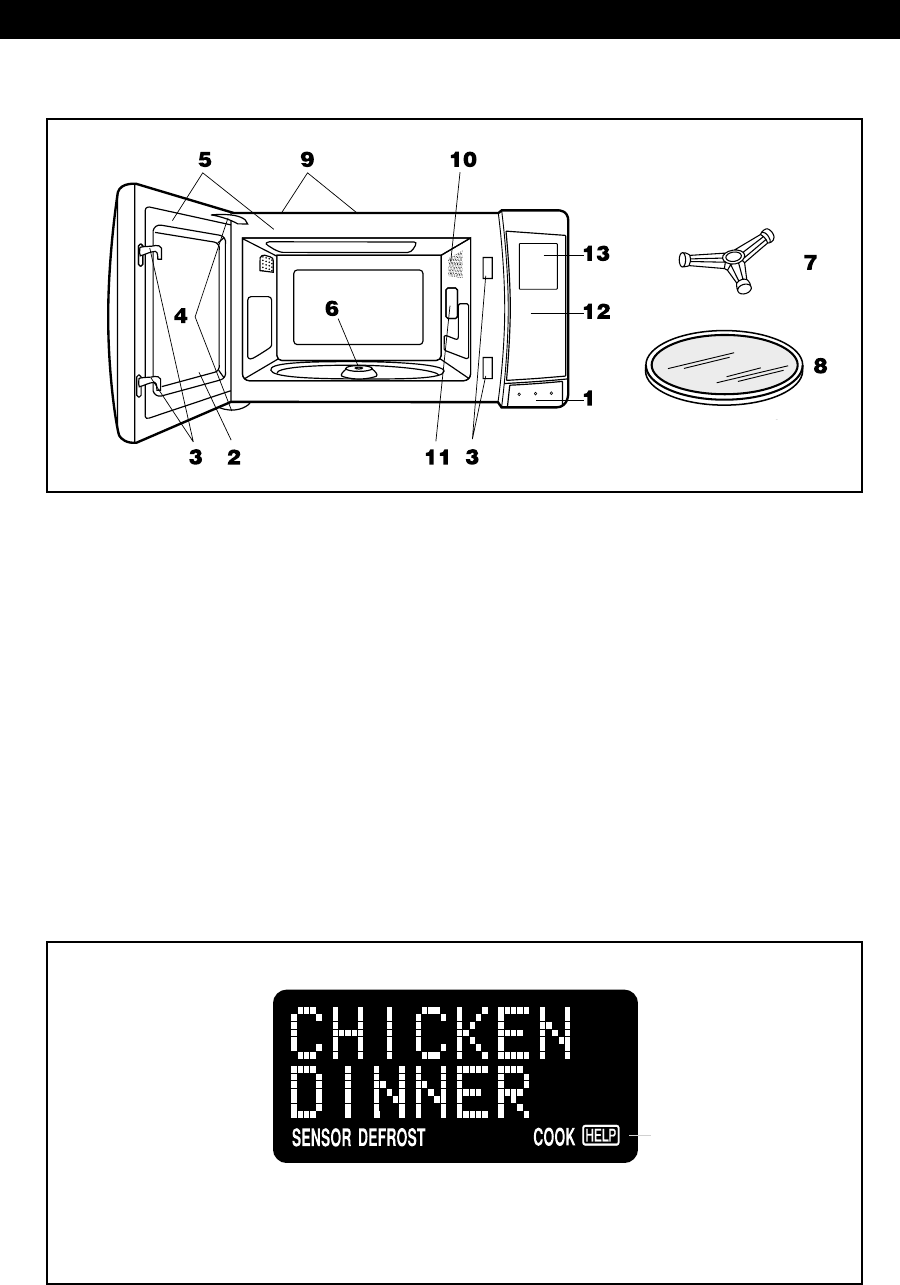

PART NAMES

1 One touch door open button

Push to open door.

2 Oven door with see-through window

3 Safety door latches

The oven will not operate unless the door is

securely closed.

4 Door hinges

5 Door seals and sealing surfaces

6 Turntable motor shaft

7 Removable turntable support

Carefully place the turntable support in the

center of the oven floor.

MICROWAVE OVEN PARTS

VISUAL DISPLAY

The two-line, Interactive Display spells out operating steps and shows cooking hints.

When HELP is lighted in the display, touch the Custom Help pad to read a specific

hint which may assist you.

8 Removable turntable

Place the turntable on the turntable support

securely. The turntable will rotate clockwise or

counterclockwise. Only remove for cleaning.

9 Ventilation openings (Rear)

10 Oven light

It will light when oven is operating or door is

open.

11 Waveguide cover: DO NOT REMOVE.

12 Auto-Touch control panel

13 Time display: 99 minutes, 99 seconds

Indicators
