2) Data Selection, Transfer

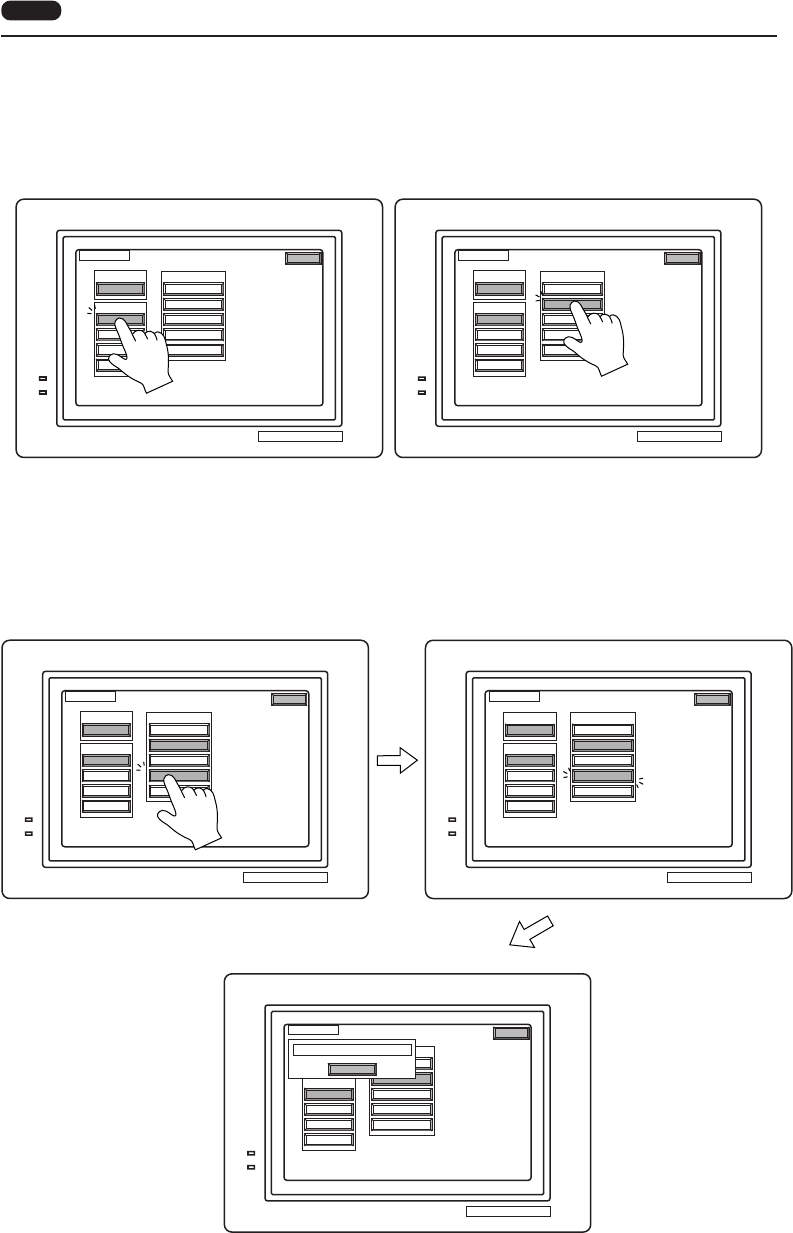

Pressing each switch leads to selection of the target for data transferring. (Possible to select multiple
items.)
3) Start
When the [Start] switch is pressed, the data transferring starts. During data transfer, the character, the
lamp of ‘Start’ switch is turned ON.
After transferring data, the following message is displayed. Press the [OK] switch.
Data Selection Transfer
