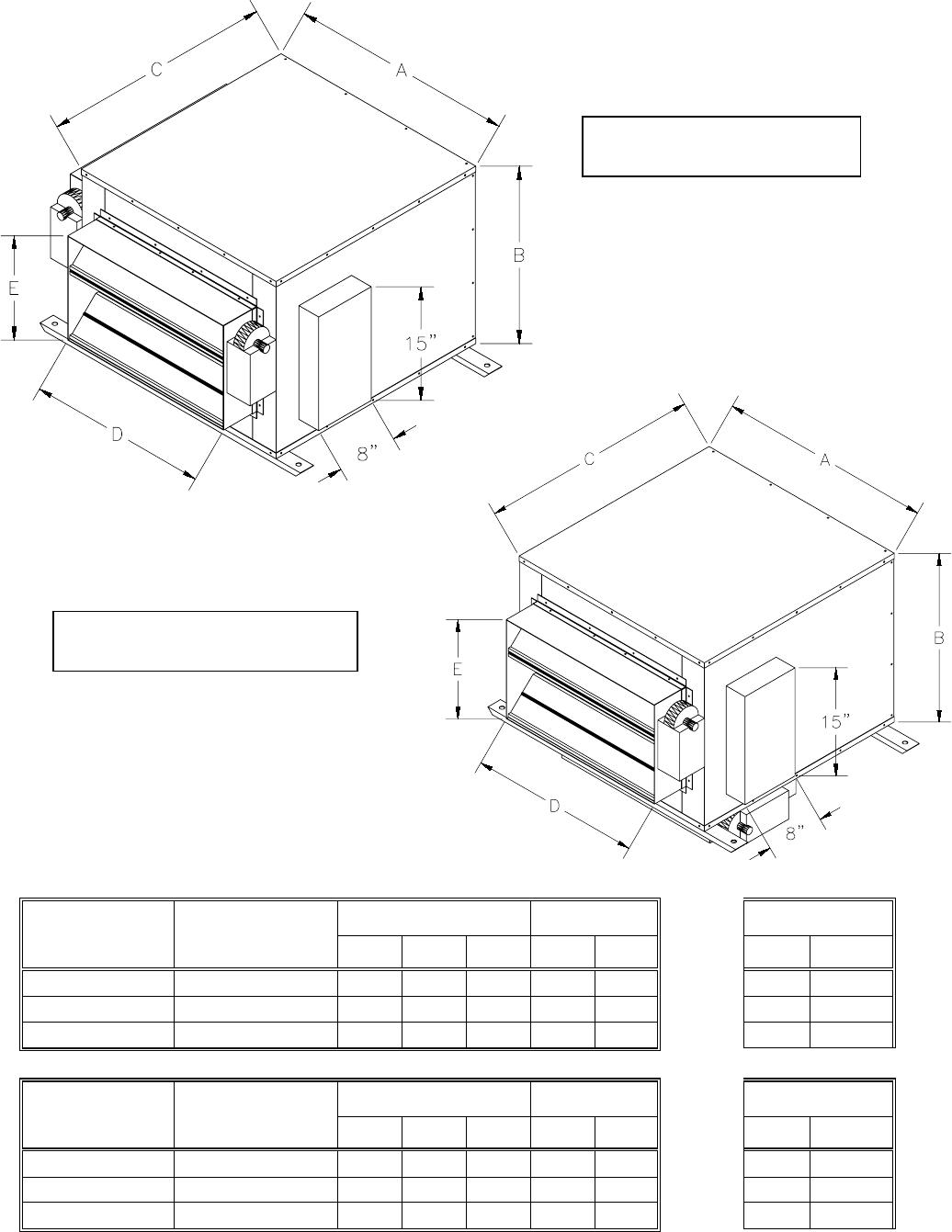

3. HORIZONTAL MIXING BOX DIMENSIONS

Horizontal Unit

Model Number

Economizer

Model Number

MIXING BOX DIM'N

DAMPER

DIM'N

CONTROL

MODULE

A

B

C

D

E

F

G

DSH024B/036B

HASE-036B-SF

26.06

23.32

23.44

17.00

14.00

8.00

15.00

DSH048B/060B

HASE-060B-SF

29.68

23.44

30.44

24.00

14.00

8.00

15.00

DSH096B

HASE-100B-SF

33.63

25.25

33.63

28.00

19.50

8.00

15.00

Horizontal Unit

Model Number

Economizer

Model Number

MIXING BOX DIM'N

DAMPER

DIM'N

CONTROL

MODULE

A

B

C

D

E

F

G

DSH024B/036B

HASE-036B-BF

26.06

23.32

23.44

17.00

14.00

8.00

15.00

DSH048B/060B

HASE-060B-BF

29.68

23.44

30.44

24.00

14.00

8.00

15.00

DSH096B

HASE-100B-BF

33.63

25.25

33.63

28.00

19.50

8.00

15.00

STANDARD SIDE & FRONT

DAMPER ARRANGEMENT

OPTIONAL BOTTOM & FRONT

DAMPER ARRANGEMENT
