Setup

ProtoMat 95s/II 37

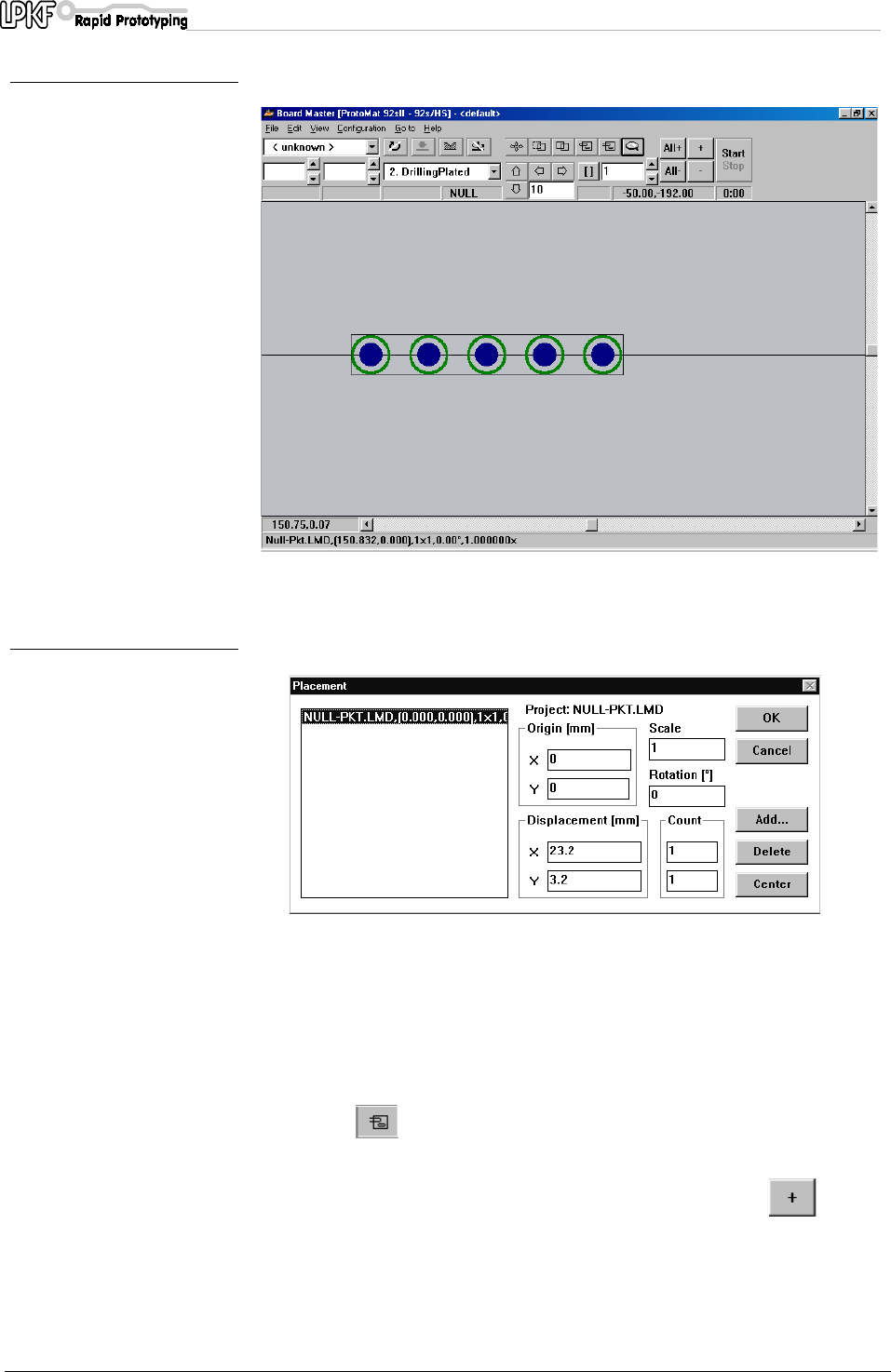

fig. 23:

› Right-click on the project.

fig. 24:

The PLACEMENT dialogue box opens. Specify the position in the

ORIGIN POINT box as x=0, y=0 and confirm by clicking on OK.

› Select the

DRILLINGPLATED

process from the production phase

list box.

› Click on and enclose the first hole by clicking and dragging with

the left mouse button.

› Now enable the selected hole for machining by clicking and

START

. The hole is drilled in the board once the tool has been

changed for the specified drill.

› Next move to the PAUSE position and rotate the board about the x-

axis.
