GP1F31T/R, GP1F32T/R, GP1F33TT/RR/RT, GP1C331/331A/332/333/334/335

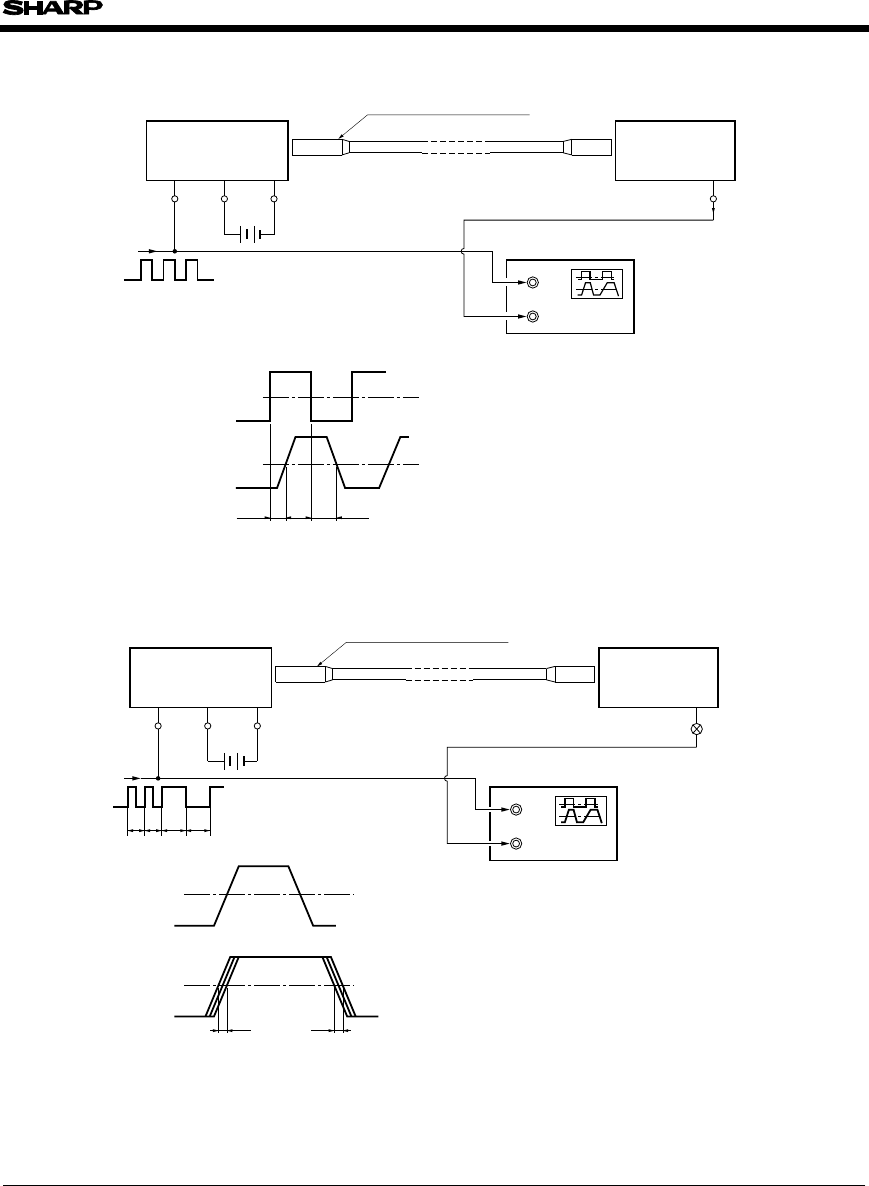

Fig.4 Measuring Method of Jitter
GP1F31T/GP1F32T/
GP1F33TT/GP1F33RT
Unit to be measured
receiver
Standard
signal
Output
CH1
CH2
Oscilloscope
Input
Input signal
Standard receiver
output
∆
tj
1
1
0 0
Input signal 3Mbps
biphase mark PRBS signal
V
CC
V
CC
GNDV
in
Standard optical fiber cable
Trigger : CH1 Storage mode
50%
50%
Notes (1) The waveform write time shall be 4 seconds. But do
not allow the waveform to be distorted by increasing
the brightness too much.
(2) V
CC=5.0±0.05V (Operating)
(3) The probe for the oscilloscope must be more than
1MΩ and less than 10pF.
∆tj
Fig.3 Pulse Response Measuring Method
GP1F31T/GP1F32T/
GP1F33TT/GP1F33RT
Unit to be measured
Standard optical fiber cable
receiver
Standard
signal
Output
CH1
CH2
Oscilloscope
Input
Input signal
GP1F31T/GP1F32T
GP1F33TT/GP1F33RT
Input signal
(CH1)
Standard receiver
Output signal
(CH2)
t
PLH
t
PHL
V
CC
V
CC
GNDV
in
6Mbps NRZ “1010” successive pattern
50%
50%
Pulse width distortion ∆tw=t
PHL
−t
PLH
Notes (1) VCC=5.0±0.05V (Operating)
(2) The probe for the oscilloscope must be
more than 1MΩ and less than 10pF.
