AL-1551 DISASSEMBLY AND ASSEMBLY 8-13

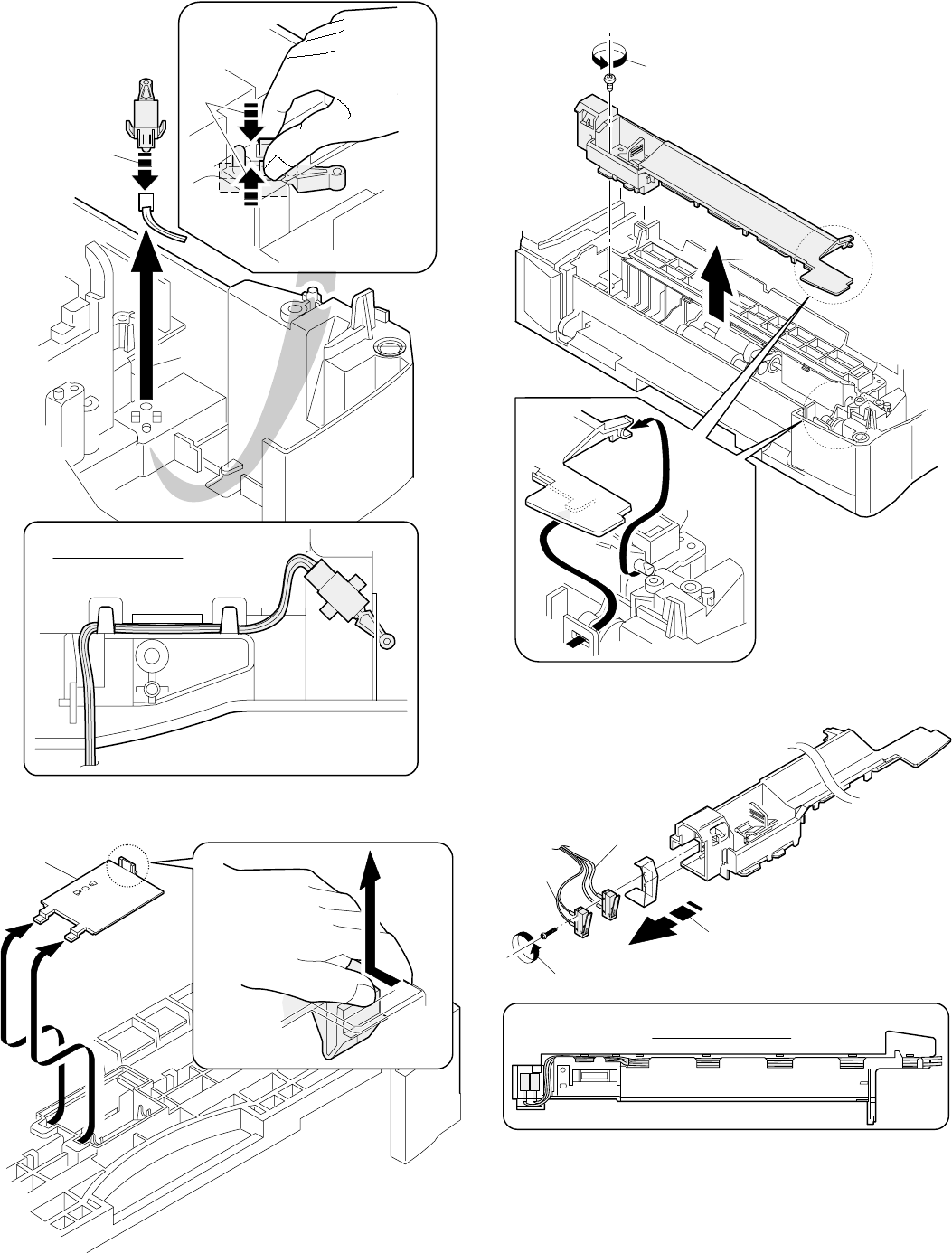

6) Remove the cassette detection switch.

7) Remove the multi cover.

Multi unit

1) Remove the screw and remove the multi upper cover.

2) Remove the screw and remove the side door detection unit.

1)

2)

3)

Wire treatment

Multi cover

2)

1)

1)

2)

Red

Orange

Back

Wire treatment
