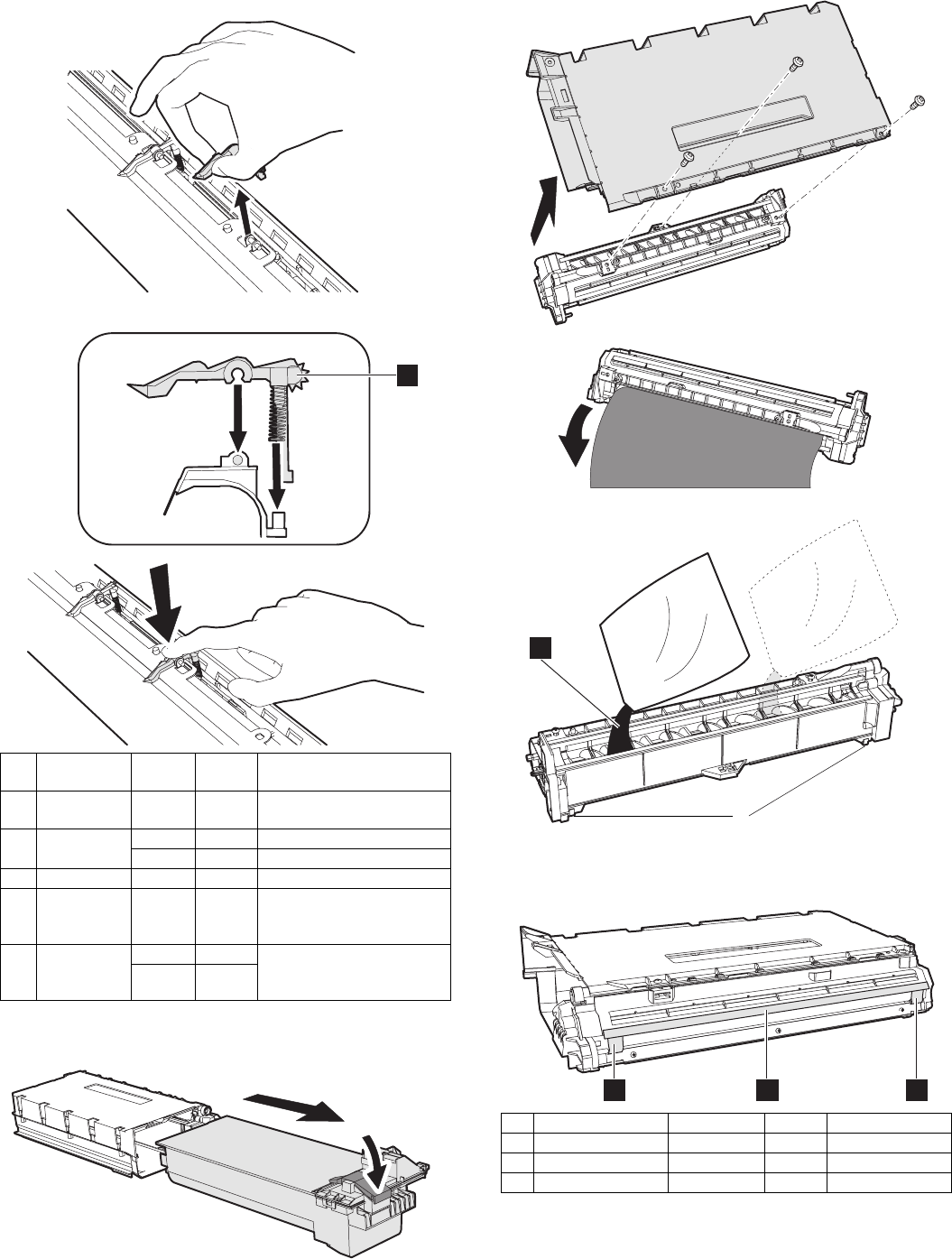

AR-5127 DISASSEMBLY, ASSEMBLY AND MAINTENANCE 10 - 3

e. Separation pawl

Disassembly* Hold the tip of the separation pawl and remove it.

Assembly* Press the center of the separation pawl and install it.

B. Developing section

(1) Developer

∗

When assembling, check that the hook is securely engaged in two

positions.

(2) DV seal/side seal

No. Part name

Service

items

Cycle Remarks

1 Cleaning

blade

Replace

50k

2 Drum frame

unit

Check 50k

Replace 200k

3 Moquette F/R Check 50k

4 MC unit Replace

50k

Unit supply only

(Individual parts in the unit

can not be supplied.)

5 Separation

pawl unit

Check 50k Unit supply only

(Individual parts in the unit

can not be supplied.)

Replace

100k

No. Part name Service items Cycle Remarks

1 Developer Replace 50k

2 DV seal Check 50k

3 DV side seal (F/R) Check 50k

∗

3 32
