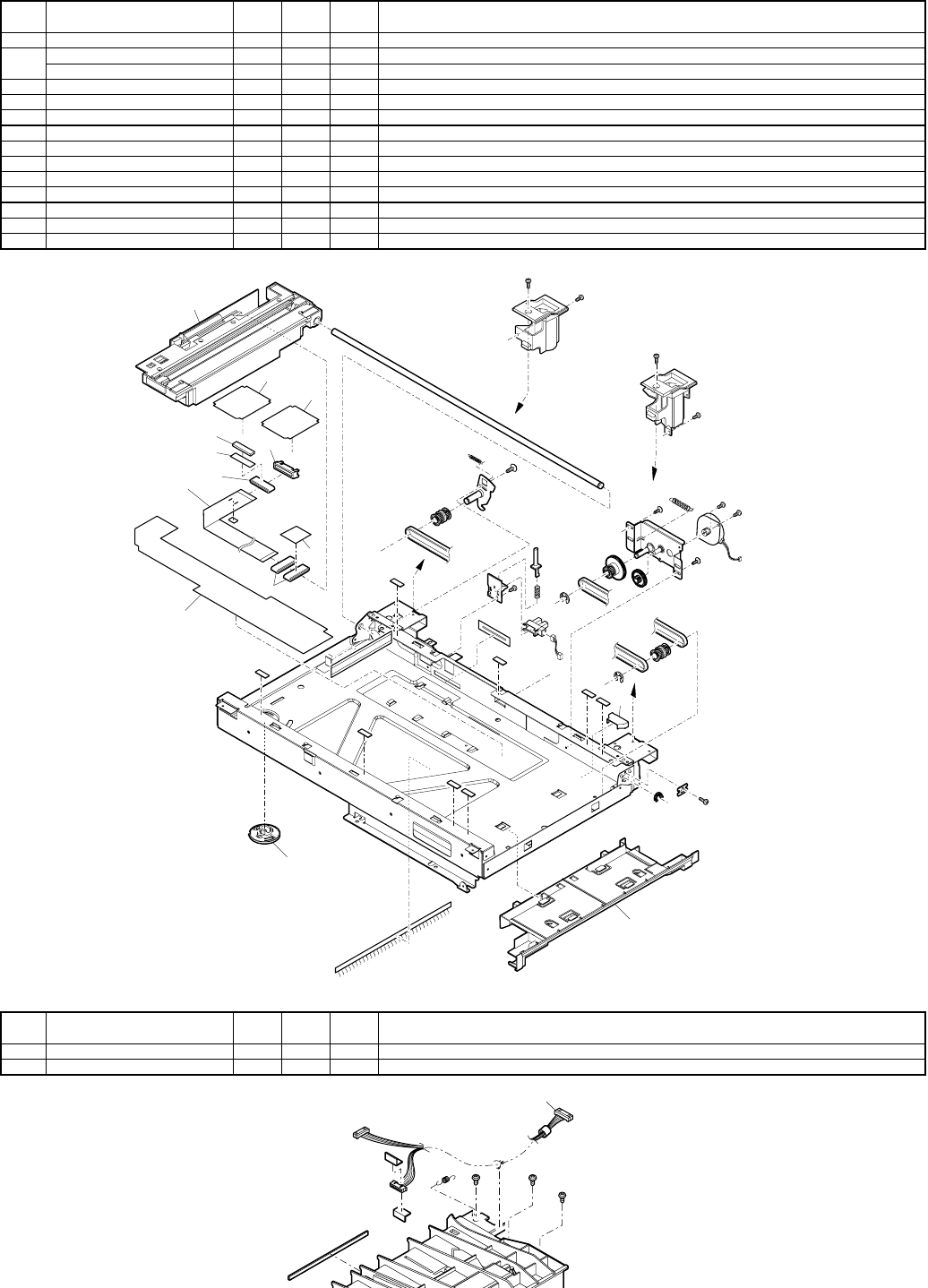

– 5 –

F

Optical frame

F

Optical frame

G

LSU unit

G

LSU unit

NO. PARTS CODE

PRICE

RANK

NEW

MARK

PART

RANK

DESCRIPTION

6 DUNT-0276QS11 BT E Carriage unit

10

MLOKZ0004QSZZ AD C Carriage lock (AL-1631/AL-1641CS)

MLOKZ0004QSZ1 AD C Carriage lock (AL-1645CS)

18 PGIDM0099QSZ1 AH C Paper guide

21 PSHEZ0367QSZ1 AD N C Cable fixing sheet

22 PDUC-0005QSZ2 AD N C Fan duct JAG

32 RCORF0018QSZZ AR C FFC core

39 PSHEZ0389QSZ1 AK C Scanner sheet

40 DHAI-0268QSZ1 AH C CCD-MCU harness

44 PSHEZ0401QSZ1 AG N C Scanner core sheet

45 PTPE-0056QSZZ AD N C Double-sided tape

46 PMLT-0068QSZZ AC C Core holder malt

47 LFIX-0025QSZZ AG N C CCD harness fixing plate

NO. PARTS CODE

PRICE

RANK

NEW

MARK

PART

RANK

DESCRIPTION

2 DHAI-0282QSZ1 AG C LSU harness

6

18

10

39

PRP01810

22

21

21

40

32

47

32

44

46

45

PRP01811

2
