Sharp AR-C360P User’s Guide

Troubleshooting > 96

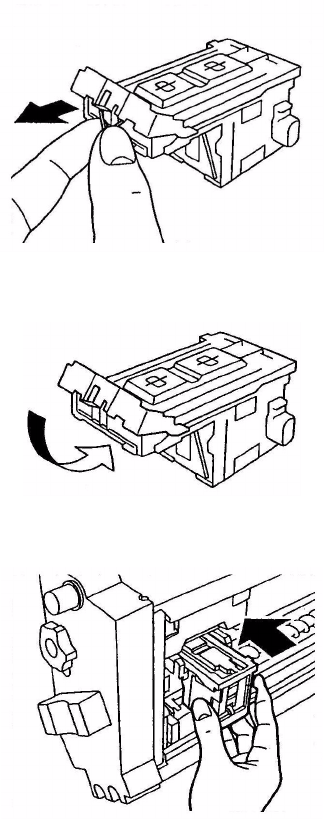

8. Remove all staples that are emerging from the staple case.

9. Return the staple cartridge gate to its original position.

10. Replace the staple cartridge.
