Chapter 7: Computer Link Function
7
44
44

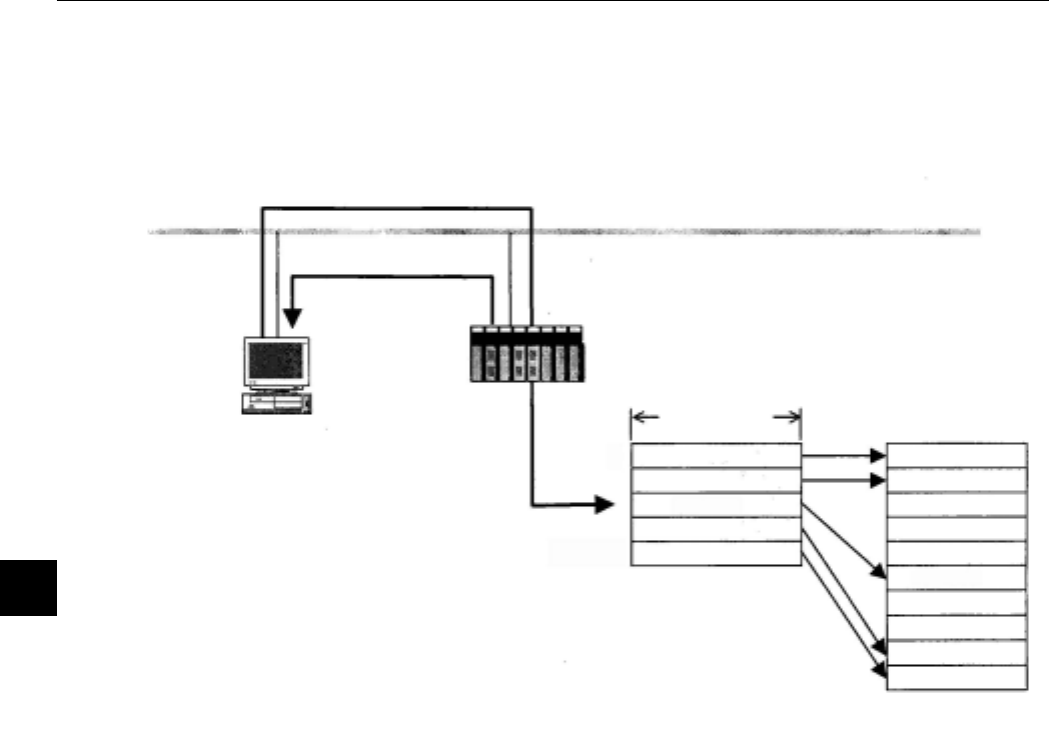

4 Write word-block data
This is a message function used to write to a virtual address space (32-bit address space) in a target
node on the network in units of one word at a time (one address = 16-bits). Be careful because the
internal address map varies with the FL-net module you are using.
Request message
Response message
16 bits
Physical memory
Virtual address space
0
AAAA
AAAA
0xffffffff
