Inserting the Cable

Inserting the Cable

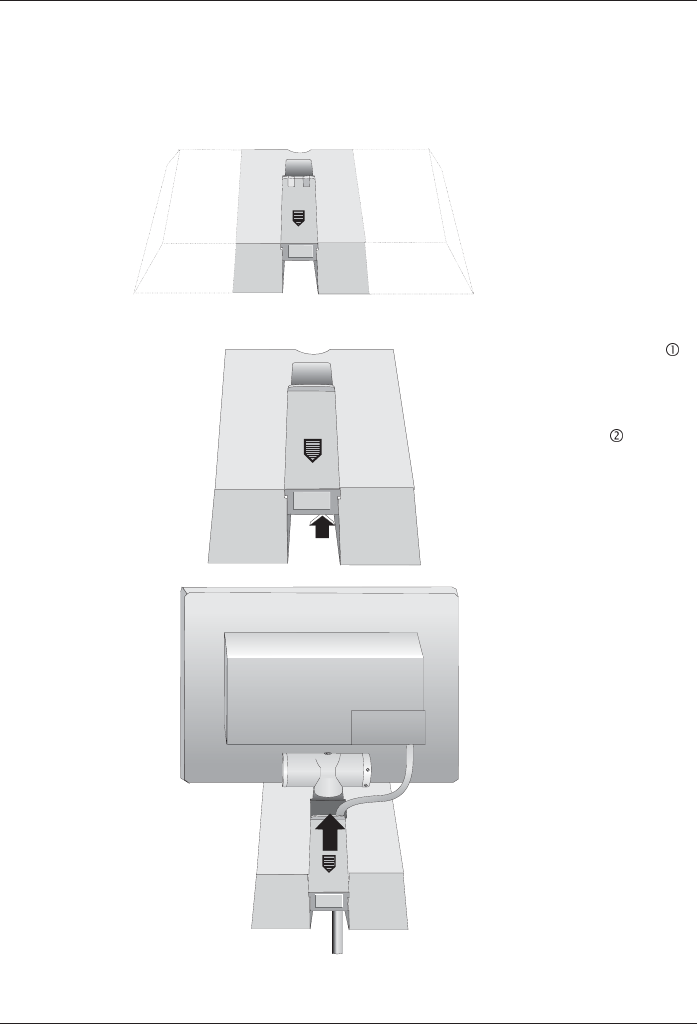

The cable cover is lo-

catedinthebaseplate.

Lift the cable cover .

Pull the cable cover

forward in the direction

of the arrow ,and

then remove it from

the guide rail.

Insert the 40-pin

BA72A cable of the

keyboard. The cable

willbecarriedinacur-

ve from the small co-

ver of the screen

module to the cable co-

ver. Replace the cable

cover in the guide rail.

Pay attention to the

openings. Slide the

cable cover back into

place. When you hear

a click, the cover is lok-

kedintoplace.

PULL

PULL

PULL

PULL

PULL

PULL

Inserting the Cable Installation

GB - 38
