Dimension: 140mm x 215mm

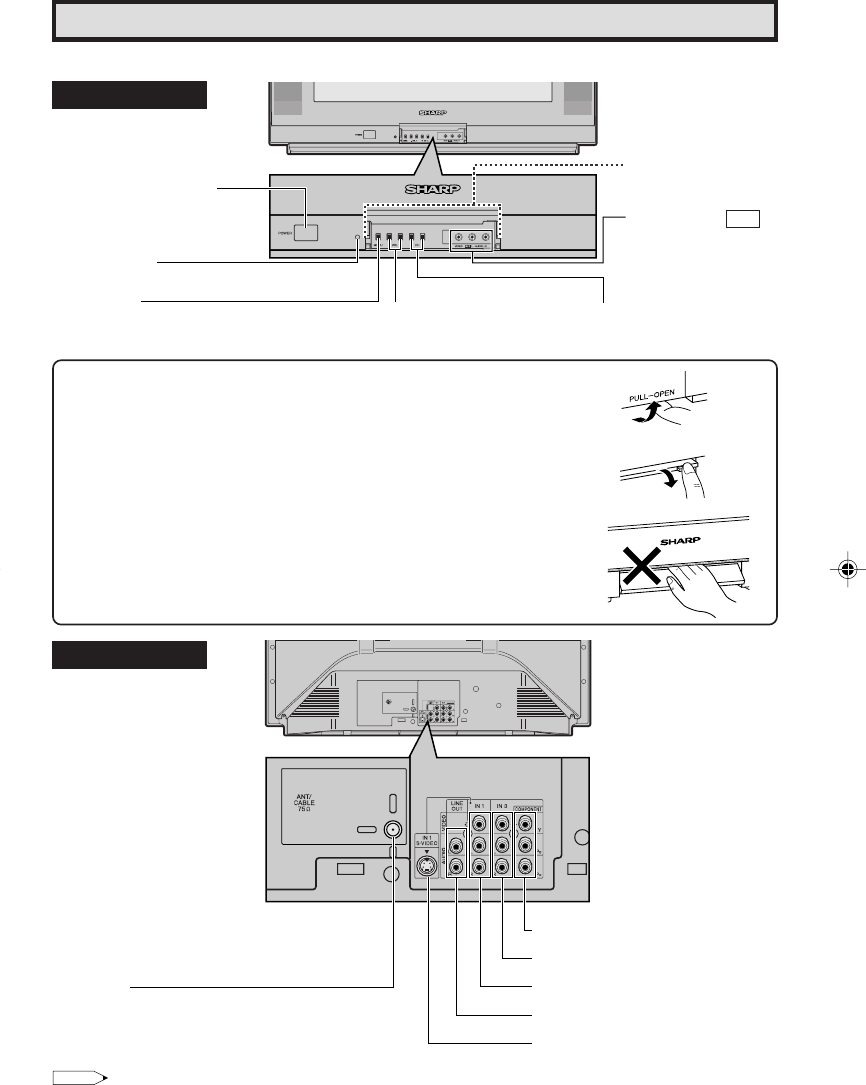

Quick Reference Control OperationQuick Reference Control Operation

Note:

• The TV set and remote control illustrations and the on-screen displays in this manual may differ from their actual

appearance.

To open the door

Using the projection located under the "PULL-OPEN" indication,

pull and lift the door open.

To close the door

Using the projection, lower the door until closed.

Caution:

• When opening or closing the door, do not insert your fingers into

the gap between the door and front panel. This may result in an

injury.

Rear Panel

ANTENNA/CABLE INPUT

TERMINAL

COMPONENT (VIDEO) TERMINALS

IN 3 (VIDEO/AUDIO) TERMINALS

•

Part Names

Front Panel

VIDEO/AUDIO

TERMINALS

IN 2

CHANNEL UP/DOWN

(a) Selects next higher channel.

(s) Selects next lower channel.

POWER

Press → On.

Press again → Off.

Press → Accesses MAIN MENU.

Press again → Exits MAIN MENU.

INSIDE DOOR

VOLUME UP/DOWN

(k) Increases sound.

(l) Decreases sound.

IN 1 (VIDEO/AUDIO) TERMINALS

LINE OUT (AUDIO) TERMINALS

IN 1 S-VIDEO TERMINAL

REMOTE CONTROL

SENSOR
