TROUBLESHOOTING AND MAINTENANCE
146

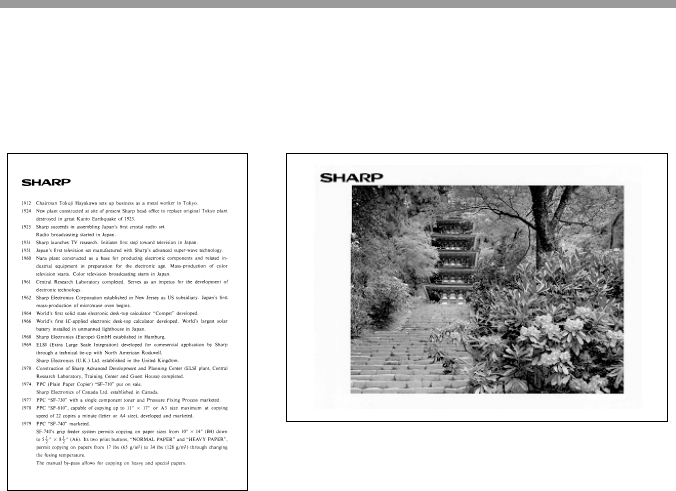

Original image samples
The original images shown below are samples to help you understand the above
explanations. Note that these images are smaller than the actual originals (the actual
originals are A4 (8-1/2" x 11") size).
Text original A Photo original B
