CHAPTER5
MISFEED REMOVAL
COPIER TROUBLE? Misfeed removal
3

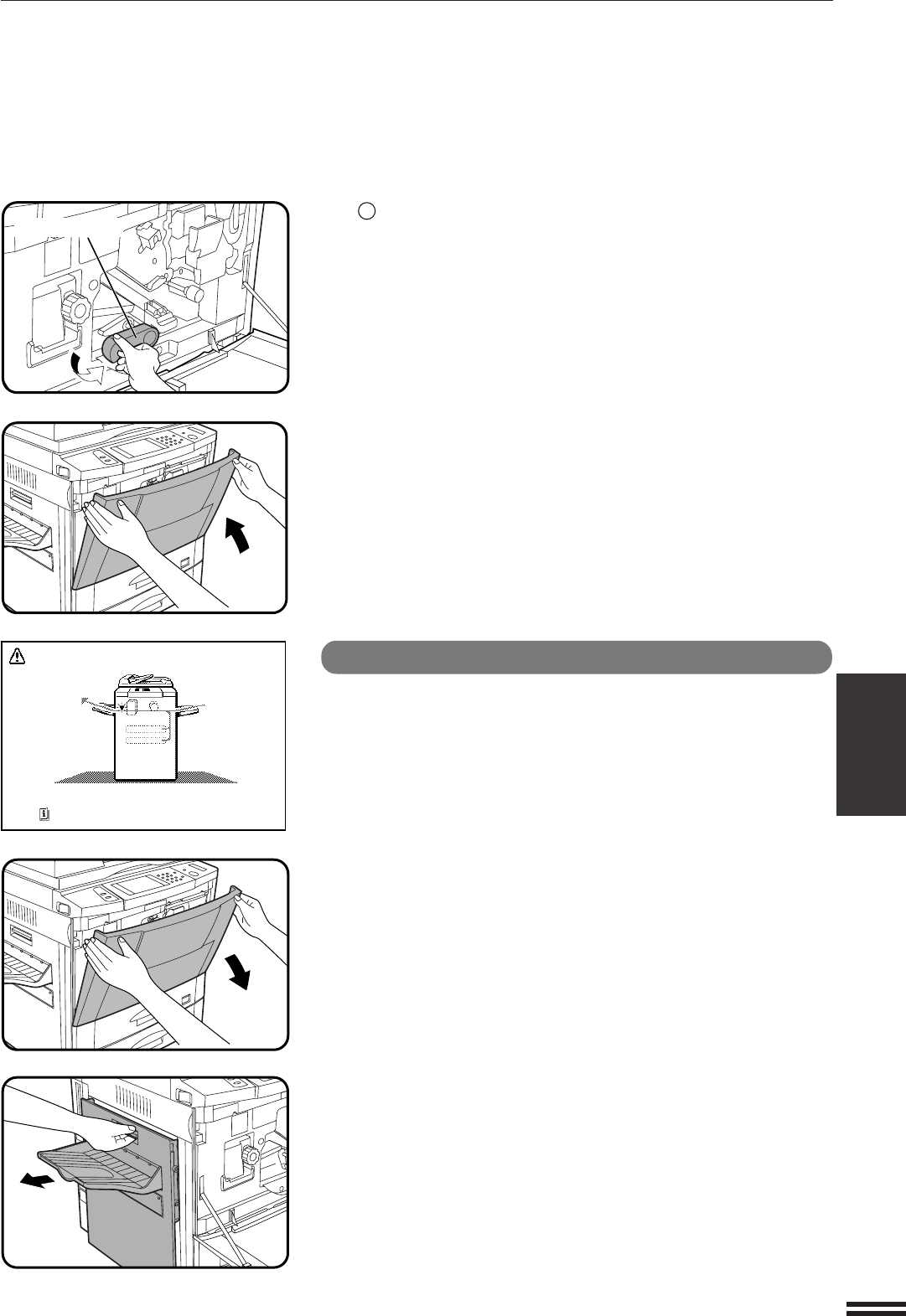

Turn the transport lever back into place.
3
Close the front cover.
●
Confirm that the misfeed display is cleared.
Misfeed around the fusing unit and exit area
NOTE:
If an optional finisher (AR-FN1N) is fitted, please refer to chapter 7
Optional Equipment for additional misfeed removal help.
1
Open the front cover.
2
Open the exit area cover carefully.
A MISFEED HAS OCCURRED.
CLEAR INDICATED AREA.
PRESS FOR RECOVERY INSTRUCTIONS.
Transport lever
