– 9 –

5

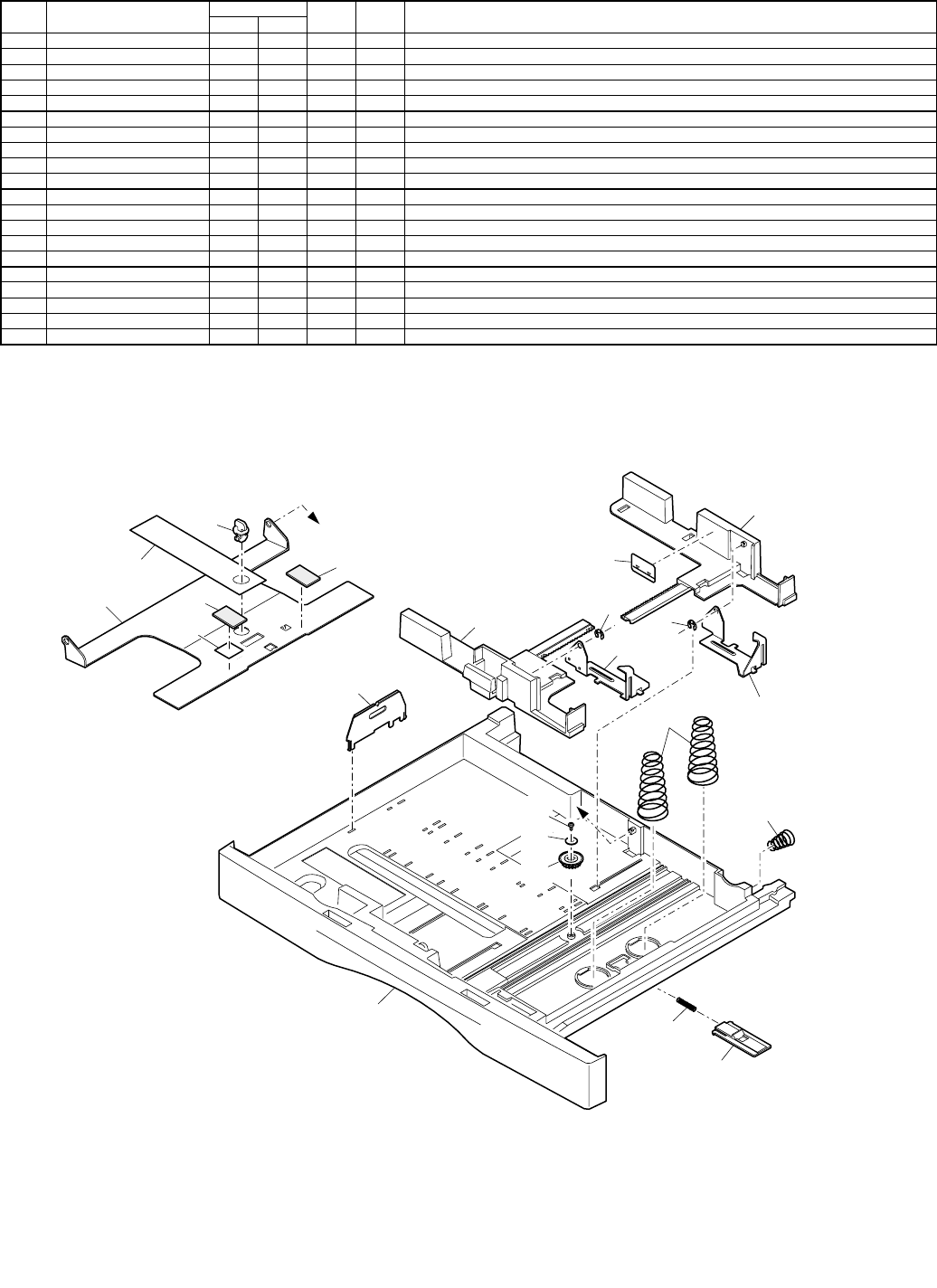

250 枚ﾄﾚｲﾕﾆｯﾄ (250 sheets tray unit)

5

250 枚ﾄﾚｲﾕﾆｯﾄ (250 sheets tray unit)

NO. PARTS CODE

PRICE RANK

NEW

MARK

PART

RANK

DESCRIPTION

Ex. Ja.

1 LPLTM0053QSZ1 AS EQ C

Rotation plate 回転板

2 PSHEZ0441QSZZ AD DJ N C

Rotation plate sheet 回転板ｼｰﾄ

3 LHLDW1226FCZZ AB DJ C

Turn fasner ﾀｰﾝﾌｧｽﾅｰ

4 LPLTM2642FCG2 AD DJ C

Tray rear plate ﾄﾚｲ後端板

7 XRESP40-06000 AA DD C

E type ring E ﾘﾝｸﾞ

8 TLABH0064QSZ1 AC DJ D

Indicator label 指示線ﾗﾍﾞﾙ

11 MSPRC0334QSZZ AD DJ N C

Tray spring ﾄﾚｲｽﾌﾟﾘﾝｸﾞ

12 XEBSD30P08000 AA DD C

Screw(3×8) ﾋﾞｽ

13 XWHSD30-08100 AA DD C

Washer ﾜｯｼｬｰ

14 NGERH0193FCZZ AB DD C

UC manual feed gear UC 手差しｷﾞｱ

15 MSPRC0152QSZZ AB DJ C

Tray spring ﾄﾚｲｽﾌﾟﾘﾝｸﾞ

16 MSPRC1145FCZZ AA DD C

Stopper spring ｽﾄｯﾊﾟｰ用ｽﾌﾟﾘﾝｸﾞ

17 LSTPP0161FCZZ AB DD C

Rotation plate stopper 回転板ｽﾄｯﾊﾟｰ

18 GCASP0003QSE2 BD GN N D

Tray case ﾄﾚｲｹｰｽ

19 TTAG-0004QSZZ AC DJ D

Tray rotation tag ﾄﾚｲ回転ﾀｸﾞ

20 PSPAZ0022QSZZ AC DJ C

Rotation plate spacer 回転板ｽﾍﾟｰｻｰ

1

2

3

4

5

6

7

8

9

10

11

15

16

17

18

7

2

20

12

13

14

19

PRP01625
