AR-D25/D24 UNPACKING AND INSTALLATION

– 3 –

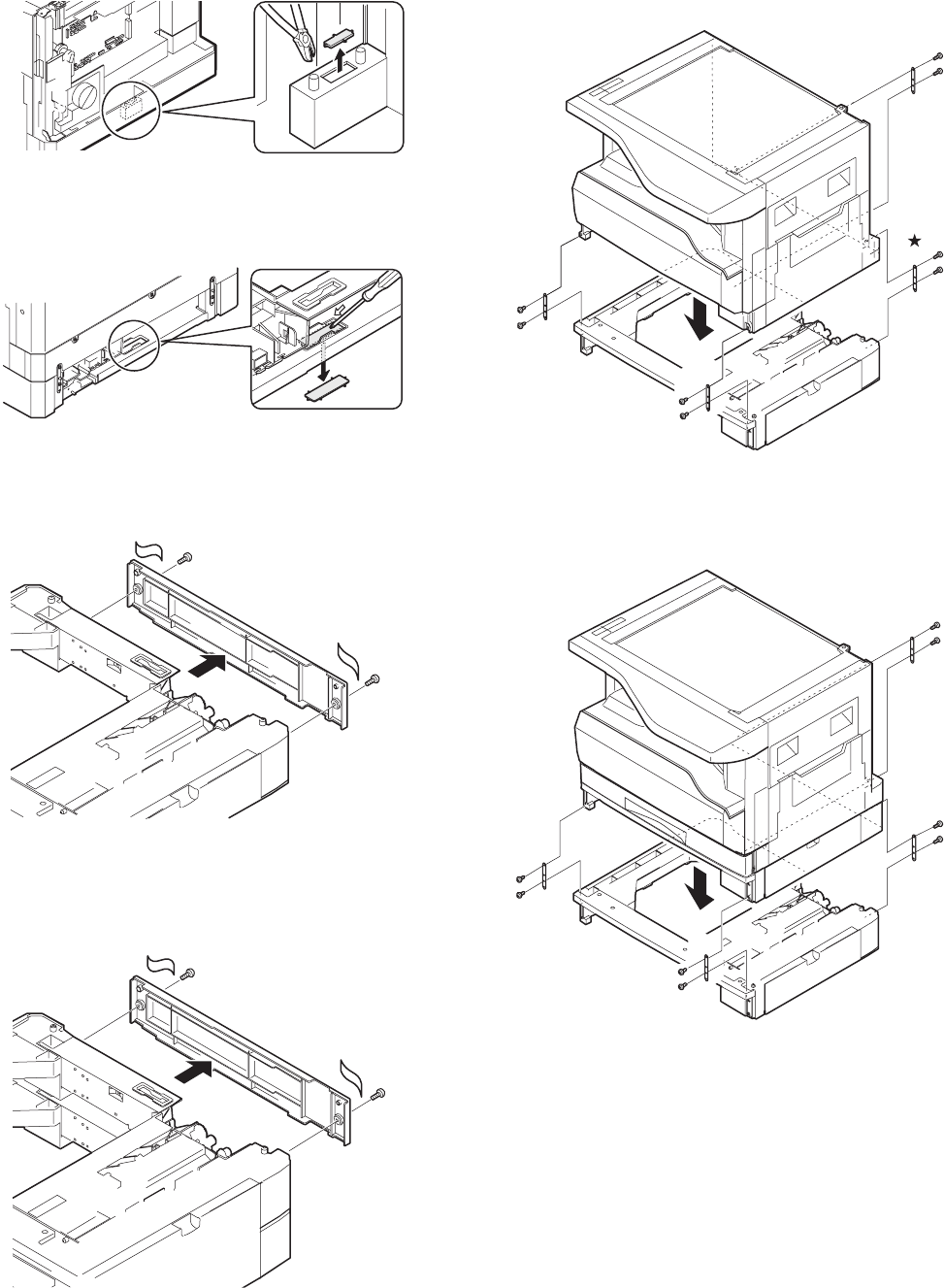

4) Make a hole for connector.

• Copier (1-tray model)

Cut out the portion shown in the illustration with nippers or the like.

• Copier (2-tray model)

Press the portion shown in the illustration with a screwdriver or the

like to remove it.

5) Remove the second cassette rear cover.

Remove the rear cover which is attached to the 250-sheet paper feed

unit.

Remove the rear cover (upper stage) from the 500-sheet paper feed

unit.

6) Install the copier onto the 250-sheet paper feed unit.

Put the copier on the 250-sheet paper feed unit, and fix with the fixing

plates and the screws.

• Copier (1-tray model) + 250-sheet paper feed unit

• Copier (2-tray model) + 250-sheet paper feed unit
