Connections

1. Installation

Extension phone (optional)

If desired, you can connect an extension phone to the

TEL. SET

socket on the fax.

♦

To connect an answering machine to your fax, see Chapter 6,

Answering Machine Connection

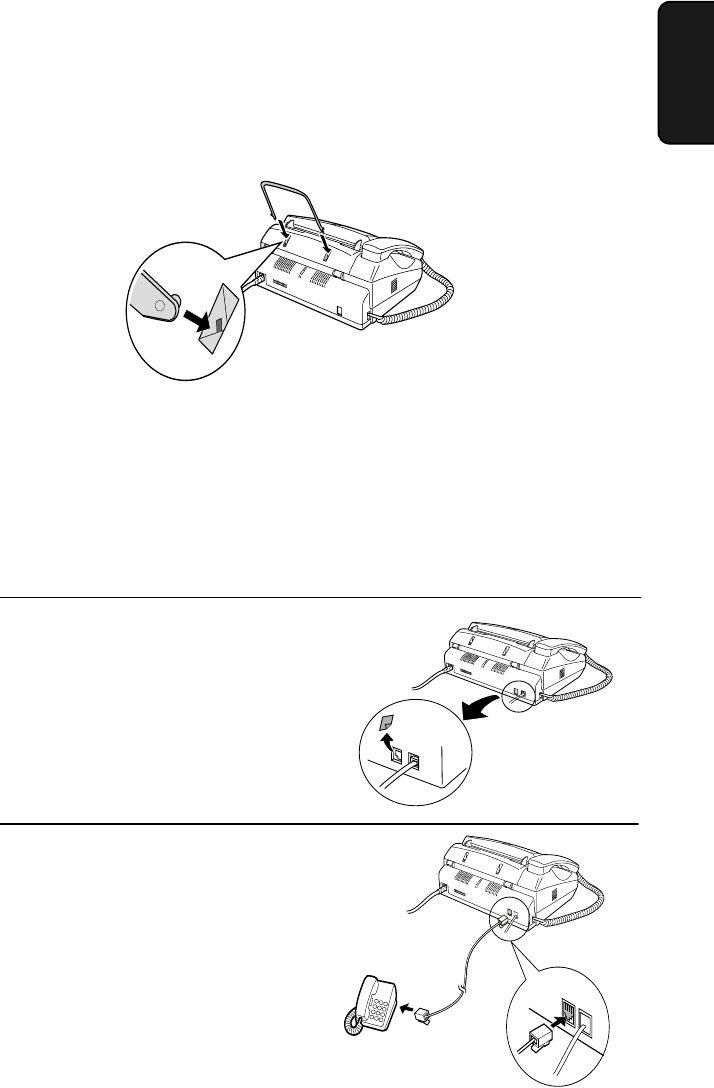

Remove the seal covering the

TEL.

SET

socket.

Connect the extension phone line to

the

TEL. SET

socket.

Attaching the original document support

Attach the original document support as shown below.

Important: In New Zealand, not all

standard telephones and answering

machines will respond to incoming

ringing when connected to the

extension socket of the equipment.

all-Fo50A.book Page 19 Friday, October 1, 1999 5:32 PM
