Remove the optical drive (3) from the optical drive bay.

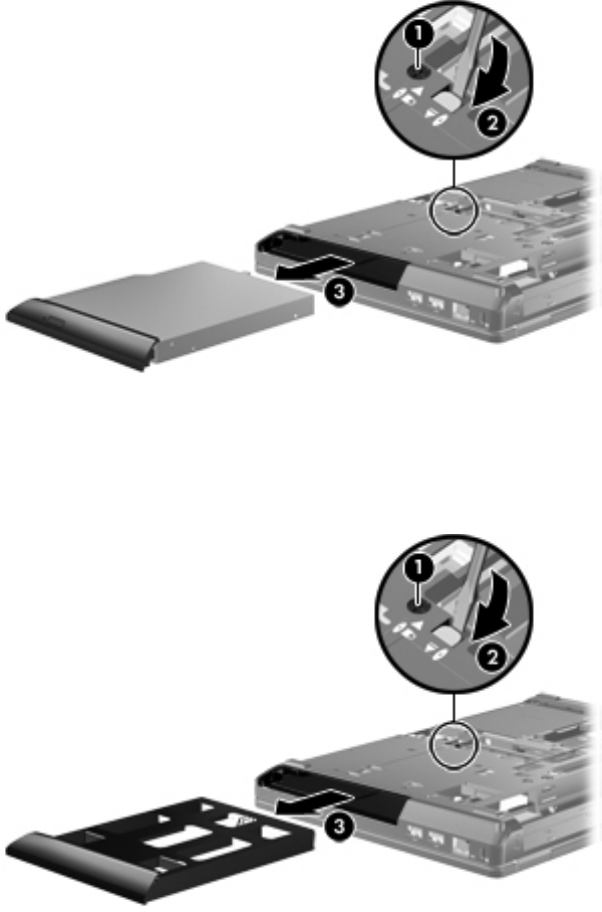

5. If the optical drive space saver is installed, loosen the optical drive captive screw (1).

6. Using a flat-bladed screwdriver, gently push the tab (2) to release the optical drive space saver.

7. Remove the optical drive space saver (3) from the optical drive bay.

8. If it is necessary to replace the optical drive bracket, position the optical drive with the rear panel

toward you.

Remove the two Phillips PM2.0×3.0 screws (1) that secure the bracket to the optical drive.

Component replacement procedures
