Wheninstalling:Makesurethattheconnectorsareattachedrmlytothesystemboard.

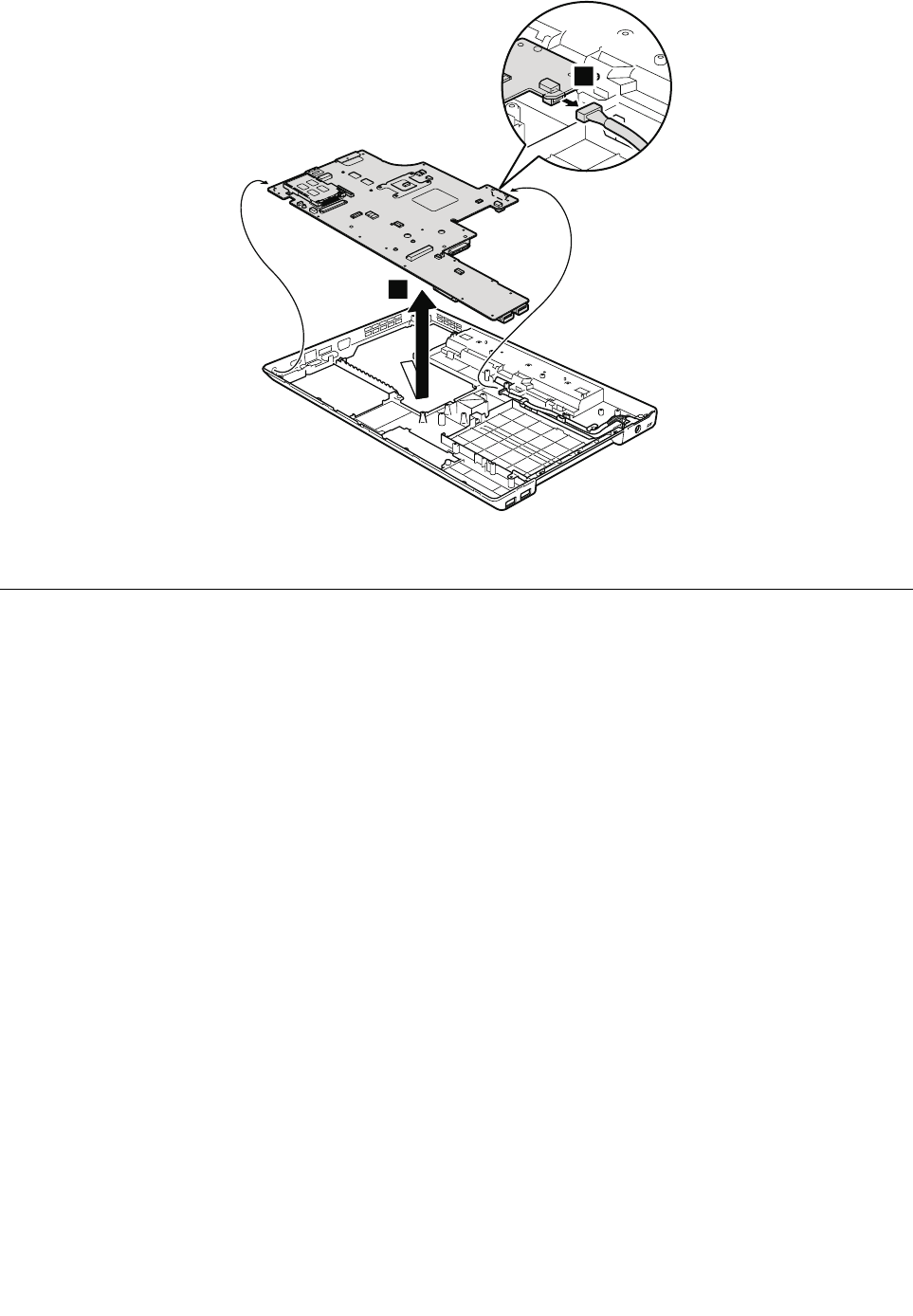

1180USBconnectorboardandUSBcableassembly
Foraccess,removetheseFRUsinorder:
•“1010Batterypack”onpage58
•“1030Thermalcover”onpage59
•“1040Harddiskdriveassembly”onpage60
•“1080WirelessWANslotcoverandPCIExpressMiniCardforwirelessWAN”onpage66
•“1090Palmrestassemblywithcables”onpage69
•“1100PCIExpressMiniCardforwirelessLAN”onpage72
•“1130Keyboard”onpage75
•“1140Keyboardbezel”onpage77
•“1150LCDunit”onpage79
•“1160Topshieldingassembly”onpage82
88HardwareMaintenanceManual
