GP1F31T/R, GP1F32T/R, GP1F33TT/RR/RT, GP1C331/331A/332/333/334/335

■ Mechanical Characteristics

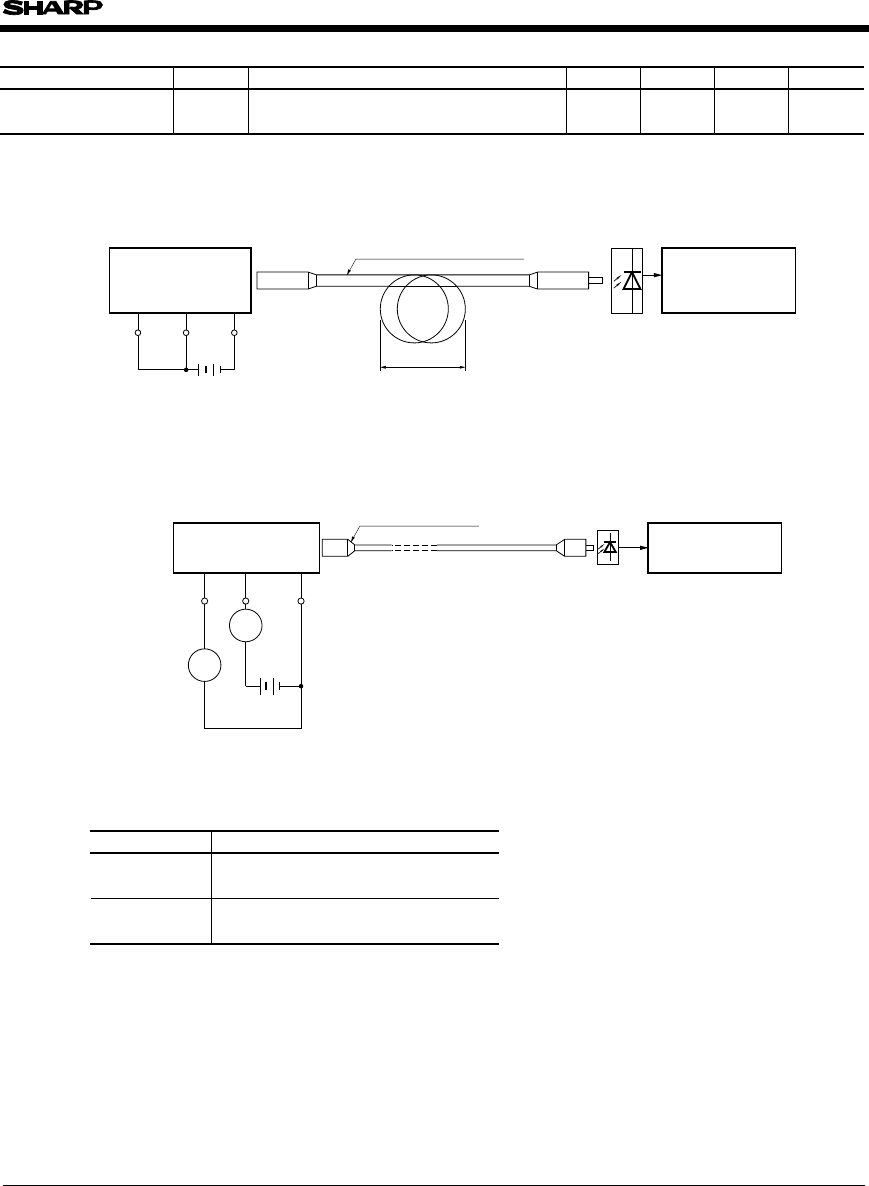

Fig.1 Measuring Method of Optical Output Coupling With Fiber

The optical power meter must be calibrated

to have the wavelength sensitivity of 660nm.

(0dBm=1mW)

GP1F31T/GP1F32T/

GP1F33TT

Unit to be measured

Standard optical fiber cable

Optical power meter

(Anritsu)ML93B

GND

Notes (1) VCC=5.0±0.05V(Operating)

(2) To bundle up the standard fiber cable, make it into a loop with the diameter (D) of 10cm or more.

Parameter Symbol

MIN.

TYP. MAX. Unit

Insertion force,

withdrawal force

− 40

Conditions

In compliance with EIAJ RC-5720

Initial value when a square connector in used.

6 −

Fig.2 Input Voltage/Power Dissipation Measuring method

Light power meter should be

corrected to wavelength sensitivity (660nm)

(0dBm=1mW)

Light power meter

(Anritsu) ML93B

Standard fiber cable

Input condition Measuring method

Input condition and measuring method

GP1F31T/GP1F32T/

GP1F33TT/GP1F33RT

Sample

GND

Note (1) VCC=5.0±0.05V (ON-State)

Vin=2.0V

or more

in=0.8V

or less

−

<=PC<=−

15dBm,

ICC=

10mA or less

PC<=−

36dBm,

ICC=

10mA or less
