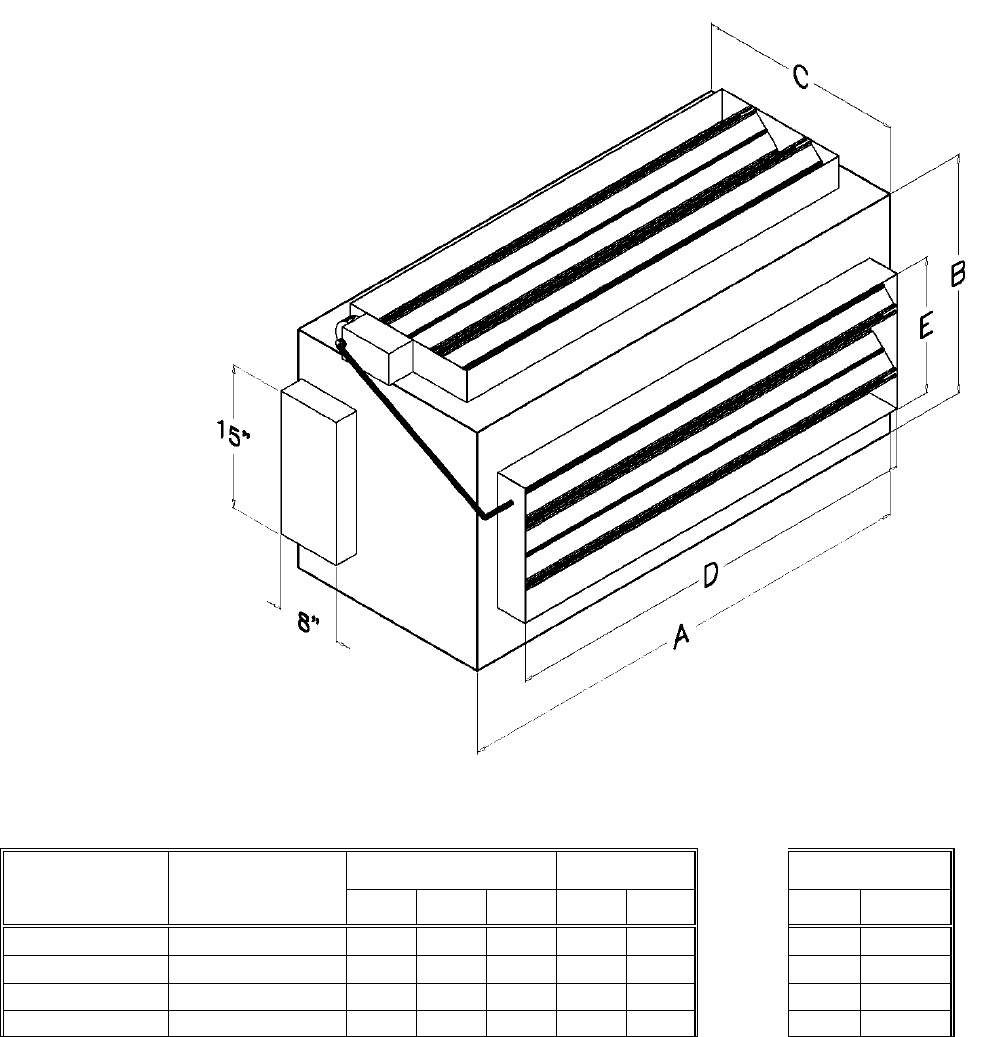

2. VERTICAL MIXING BOX DIMENSIONS

Vertical Unit

Model Number

Economizer

Model Number

MIXING BOX DIM'N

DAMPER

DIM'N

CONTROL

MODULE

A B C D E

F G

DSV060B VASE-060B-1

49.00 27.75 24.00 40.00 14.00

8.00 15.00

DSV096B/120B VASE-120B-1

66.50 36.25 26.50 58.00 19.50

8.00 15.00

DSV144B/180B VASE-180B-1

78.00 35.75 28.50 70.00 19.50

8.00 15.00

DSV240B VASE-240B-1

86.00 41.25 34.00 78.00 25.00

8.00 15.00
