2 of 8 P/N 11934-S12
Section 9 Cirrus Design
Supplements SR20
Section 1 - General
The airplane is equipped with a single Garmin GTX 327 ATC Mode A/
C (identification and altitude) transponder with squawk capability. This
supplement provides complete operating instructions for the GTX 327
and does not require any additional data be carried in the airplane.

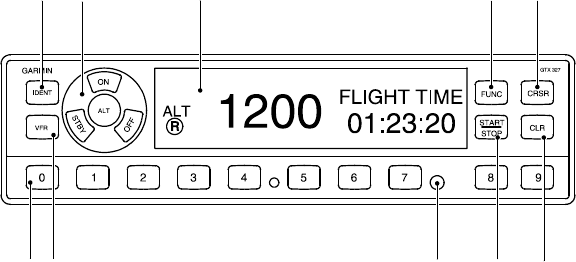

SR20_FM09_1501
12 3 4 5
6789
10
1. Identification Key
2. Mode Selector Keys
a. OFF
b. STBY (Standby)
c. ON
d. ALT
3. Display Window
4. FUNC (Function) Key
5. CRSR (Cursor)
6. CLR (Clear) Key
7. START/STOP Key
8. Photocell
9. VFR Key
10. Selector Keys
a. 0-7 - Code Selection
b. 8-9 - Display Brightness/Contrast
Original: 12-26-00
