Installing the Software

1. Installation

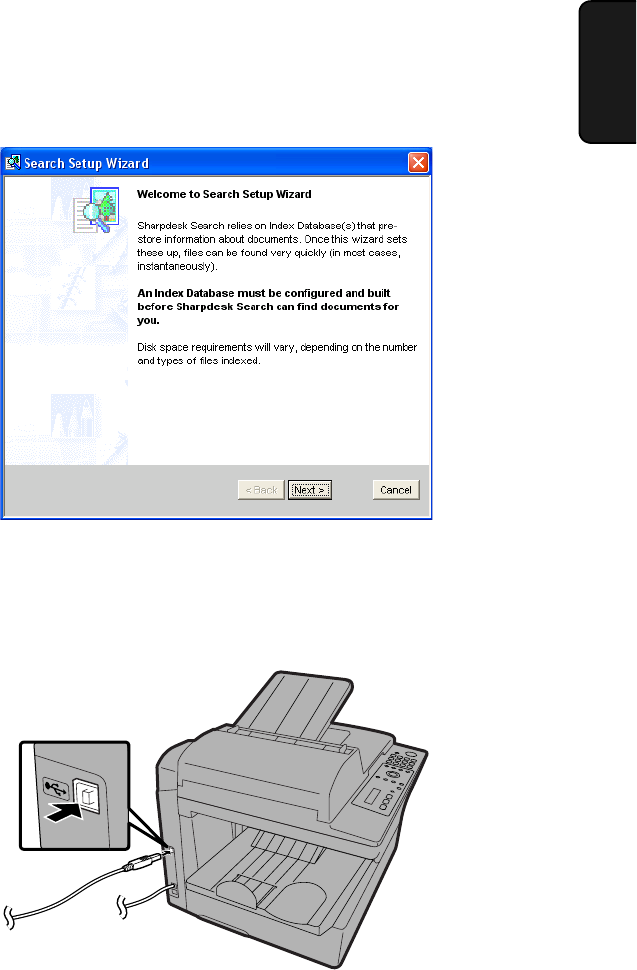

9. The Search Setup Wizard will appear. Follow the on-screen instructions to

create an index database for Sharpdesk.

10. Make sure that the power cord of the machine is not plugged in (the machine

is powered off), and then connect the USB cable.

♦ Insert one end of the USB cable into the USB port on the machine and the

other end into your computer’s USB port.
