Using the Machine as a Shared Printer on a Network
37
1. Installation

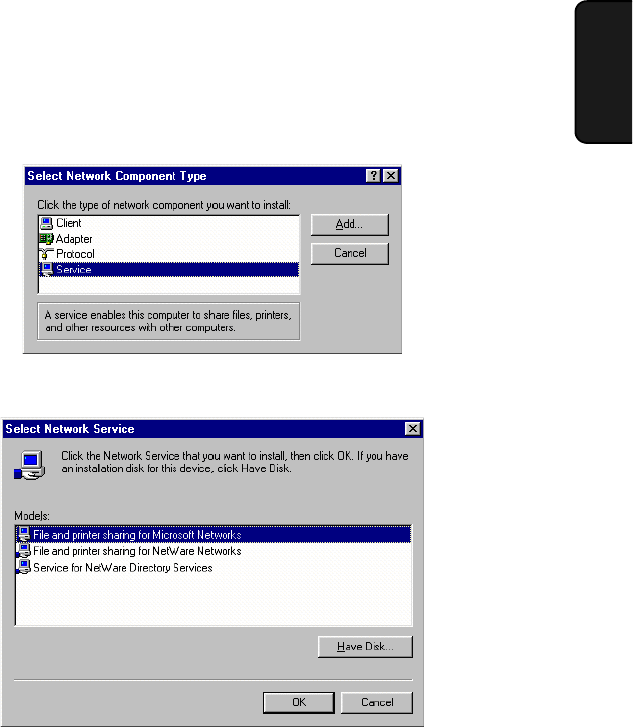

3. Click the Add button on the Configuration tab.
4. Select Service from the list of network component types and click Add.
5. Select File and printer sharing for Microsoft Networks and click OK.
6. Click OK in the Network dialog box.
♦ If you are asked for your Windows
®
Me CD-ROM, insert the CD-ROM into
your CD-ROM drive and click OK.
7. You will be prompted to restart your computer. Click OK to restart.
8. Click the Start button, point to Settings, and select Printers.
9. Right-click the SHARP AM-400 icon and select Sharing.
10. Select Shared as on the Sharing tab.
