S011 Other section
Section Unit Part
JOB
CODE
After-work
NOTE
S No. Part name Ua No. Unit name Ub No. Unit name P No. Part name JOB No.
S 011 Others P 001 Fan motor ASS

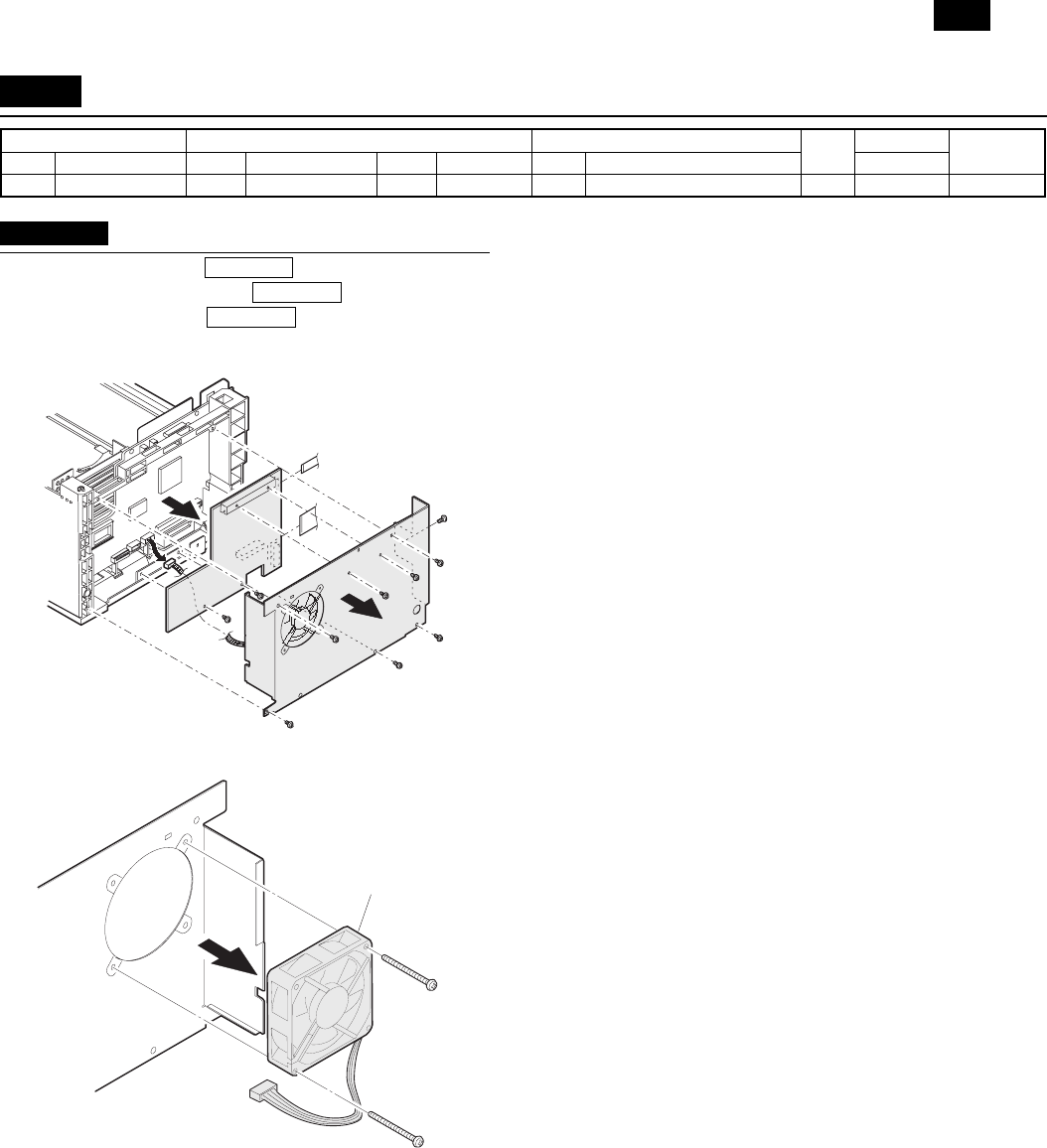

S011/P001 Fan motor
(1) Remove the rear cabinet S001/P001 .
(2) Remove the front upper cabinet S001/P002 .
(3) Remove the right cabinet S001/P003 .
(4) Remove the FAX control PWB unit, the screw, the connector, and
remove the fan motor unit.
(5) Remove the screw, and remove the fan motor (S010/P001).
∗ Troubles caused by improper work
1) Image distortion
S010/P001
FO-3800M
9 – 38
