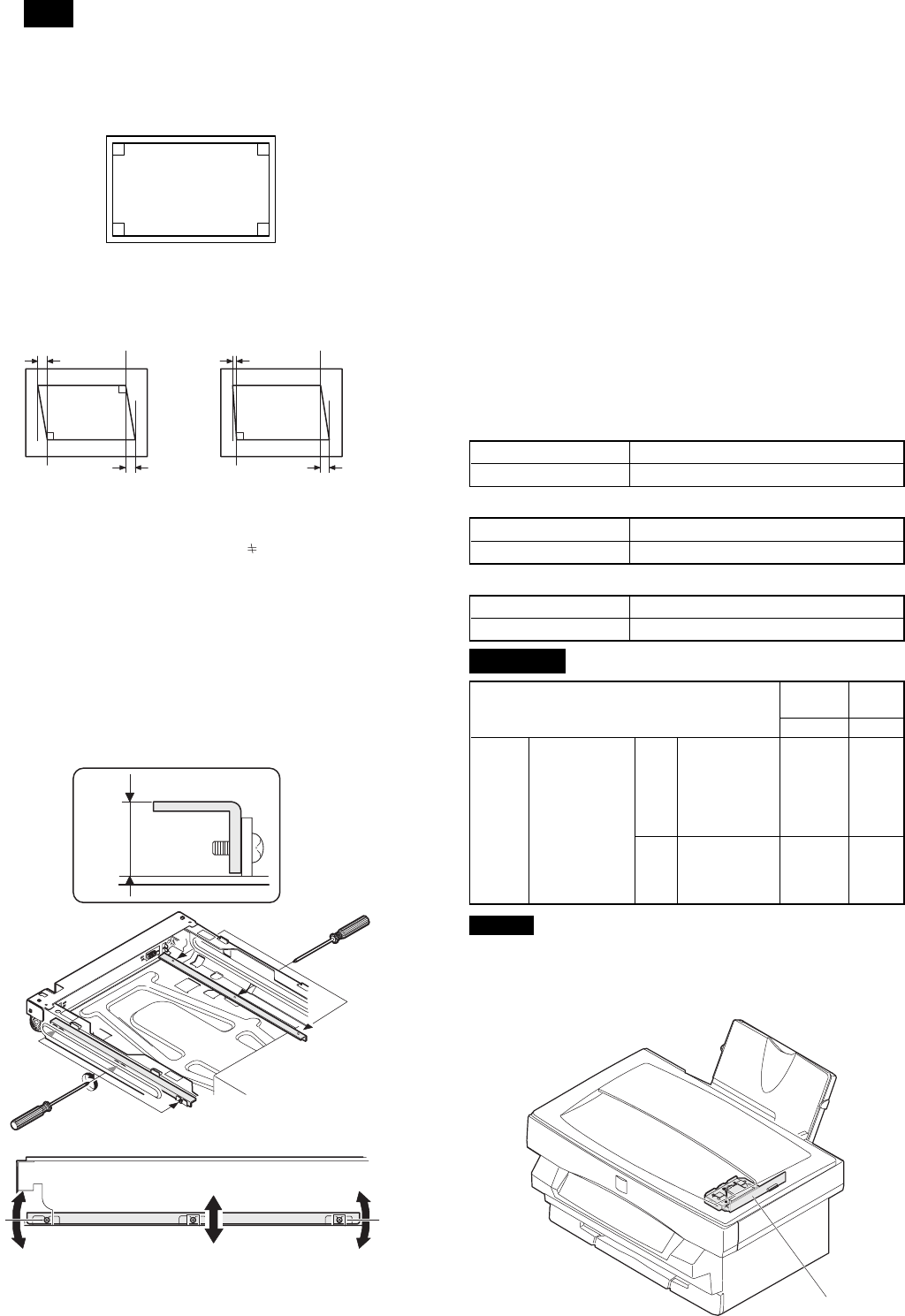

3) Check the main scanning direction distortion.

If the four angles of the copy are right angles, there is no distor-

tion.

If there is any distortion in the sub scanning direction, perform the

following procedures.

4) Check the distortion difference (distortion balance) between the

right and the left sides.

If Lc = Ld, the image distortions of the right and the left sides are

equal to each other.

If the above condition is satisfied go to procedure 9).

If the above condition is not satisfied, perform the following proce-

dures.

5) Check the height of the scanner rail on the rear frame side.

If the scanner rail heights (on the right and the left sides) from the

scanner chassis level are not 9.0mm, adjust so that they are

9.0mm.

6) Set the test chart made in procedure 1) on the document table,

and make a copy on A4 (11" × 8.5") paper.

7) Check the distortion difference (distortion balance) between the

right and the left sides.

If Lc = Ld, the image distortions of the right and the left sides are

equal to each other.

If the above condition is satisfied go to procedure 9).

If the above condition is not satisfied, perform the following proce-

dures.

8) Change the height balance of the scanner rail on the front frame

side.

Repeat procedures 6) ∼ 8) until the image distortion difference

(distortion balance) becomes zero.

9) If the image distortion difference becomes zero, change the over-

all height of the front frame side scanner rail.

10) Set the test chart made in procedure 1) on the document table

and make a copy on A4 (11" × 8.5") paper. Check that the main

scanning direction distortion is within the specified range.

Repeat procedures 9) ∼ 10) until the main scanning direction dis-

tortion is within the specified range.

∗

Preliminary work

JOB No. Content

ADJ M2/ADJ 2 Copy sub scanning direction distortion

∗

After-work

JOB No. Content

ADJ M3 Copy magnification ratio adjustment

∗

Necessary tool

Name Scale

Parts code/Price rank —

ADJ M3 Copy magnification ratio adjustment

Content

Preliminary

work

After-

work

JOB No JOB No

ADJ M3 Copy

magnification

ratio adjustment

ADJ 1 Main scanning

direction

magnification

ratio (focus,

resolution)

adjustment

ADJ M3/

ADJ 3

ADJ M4/

ADJ 2

ADJ 2 Sub scanning

direction copy

magnification

ratio adjustment

ADJ M4/

ADJ 1

ADJ 1 Copy focus (resolution), main scanning

direction copy magnification ratio

adjustment

∗

Location

Copy A Copy B

Lc = Ld

Lc Ld

Though there is some distortion,

there is no difference between the

right and the left distortions.

There is some difference between

the right and the left distortions

9mm

ADJ M4

FO-3800M

7 – 8
