10-4 User’s Guide

At the Fuser Unit

Clearing Paper Jams

At the Fuser Unit

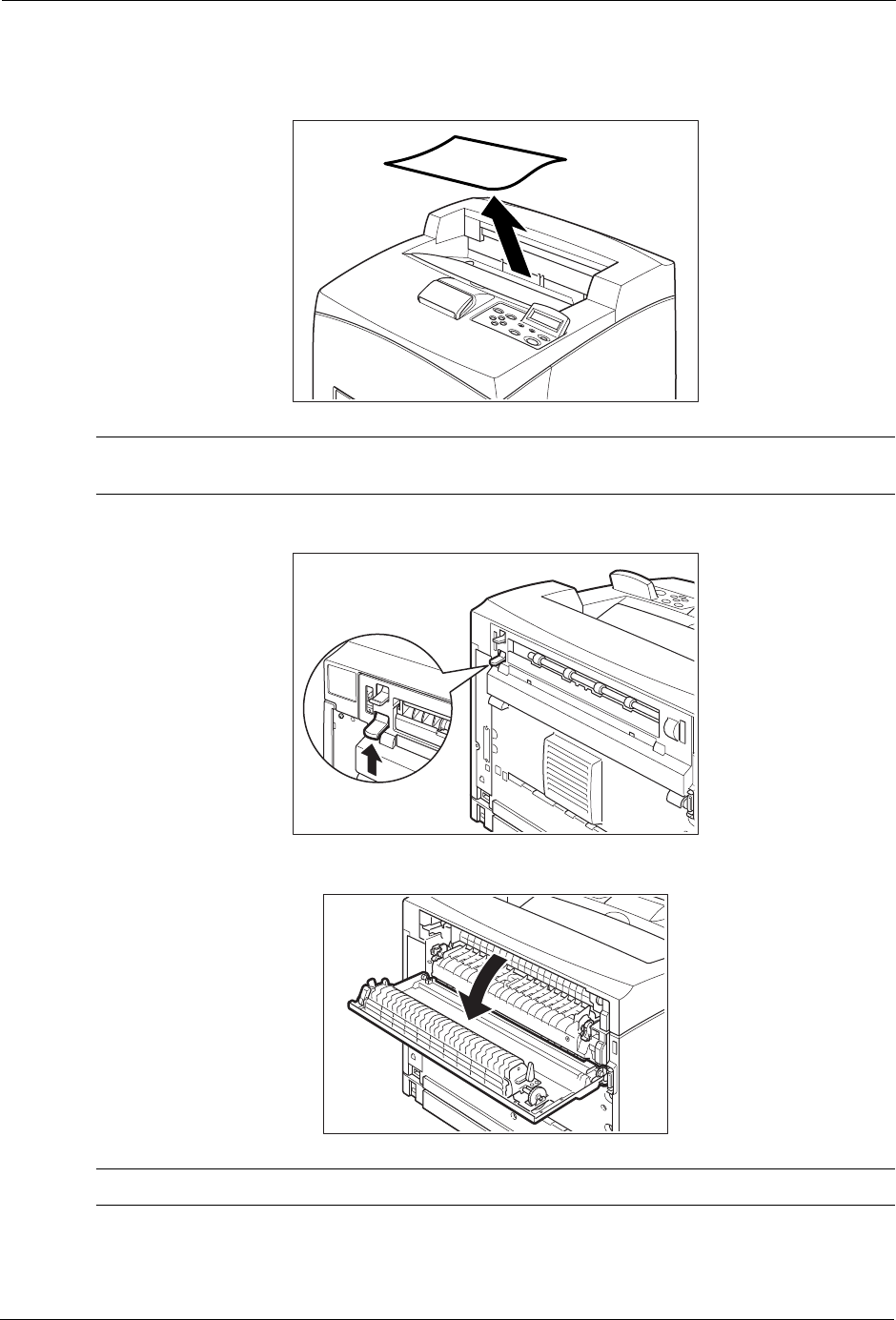

1. Remove any paper from the Standard Output Tray.

NOTE: If the duplex unit is installed, open the cover of the Duplex module first. See“At the Duplex

Module” on page 10-8.

2. Lift the second lever from the top left corner of the back of the printer.

3. Open the rear cover.

NOTE: Do not touch any parts inside the printer.
