Using external equipment

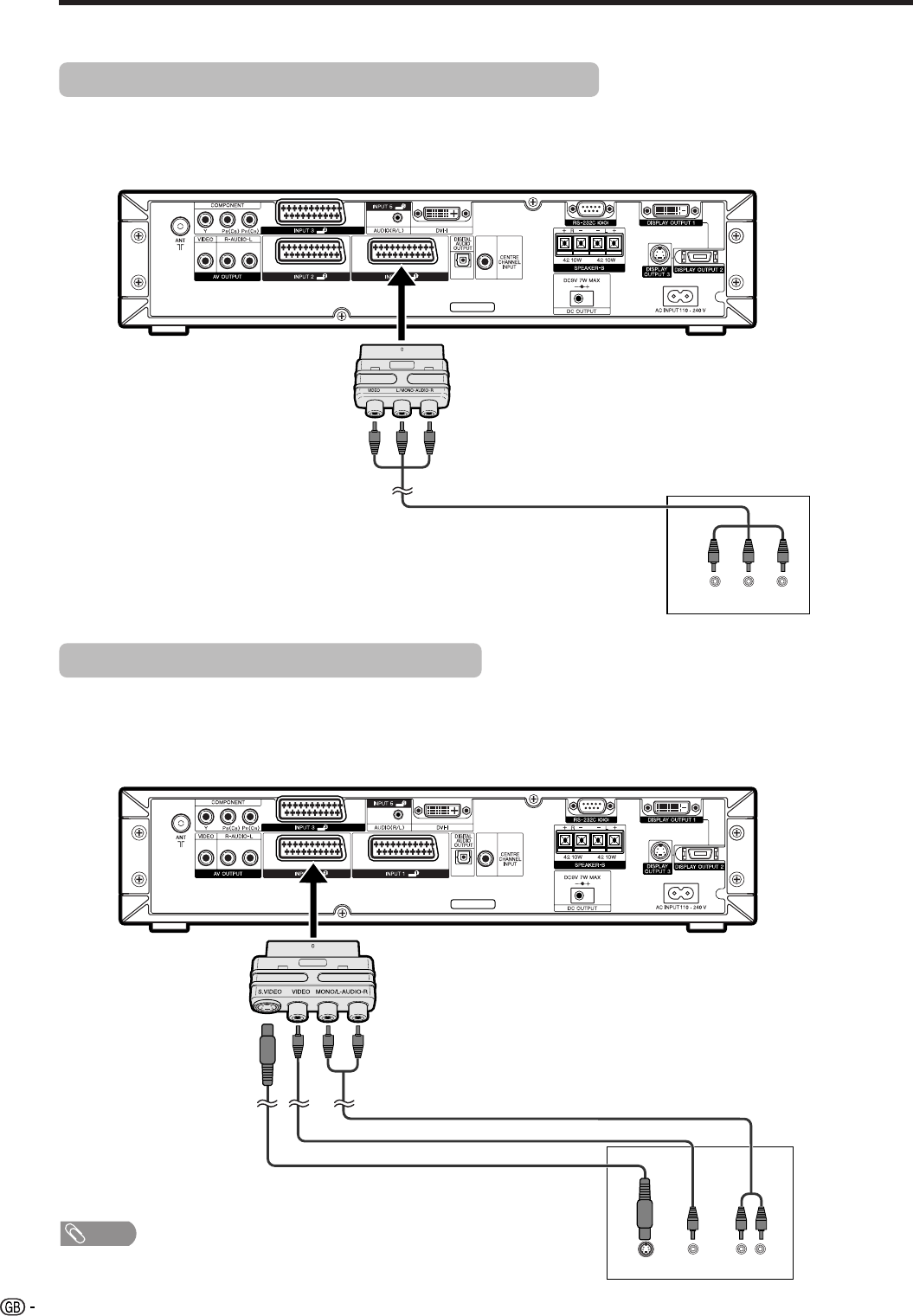

When connecting a game console using composite cable

You can use the INPUT 1, 2 or 3 terminal when connecting a game console and other audiovisual equipment.

VIDEO L/MONO-AUDIO-R

AVC System (rear view)

To watch an image from this input terminal, you may

need to select the input signal type (see page 49).

Composite cable (commercially available)

Game console

VIDEOS. VIDEO L/MONO-AUDIO-R

AVC System (rear view)

VCR

When connecting a VCR using S-video cable

You can use the INPUT 2 or INPUT 3 terminal when connecting a VCR and other audiovisual equipment.

To watch an image from this input terminal, you may

need to select the input signal type (see page 49).

S-video cable (commercially available)

Video cable (commercially available)

Audio cable (commercially available)

The System can be connected to a SCART terminal on the external equipment with SCART cable. Refer to the

operation manual of the external equipment for details.

RCA/SCART

conversion connector

RCA/SCART

conversion connector

NOTE

• Use either video cable or S-video cable alone to connect to the terminal.

Do not connect them together.

LC-65G5X(E)-g 05.10.17, 7:40 AM44
