1 - 46

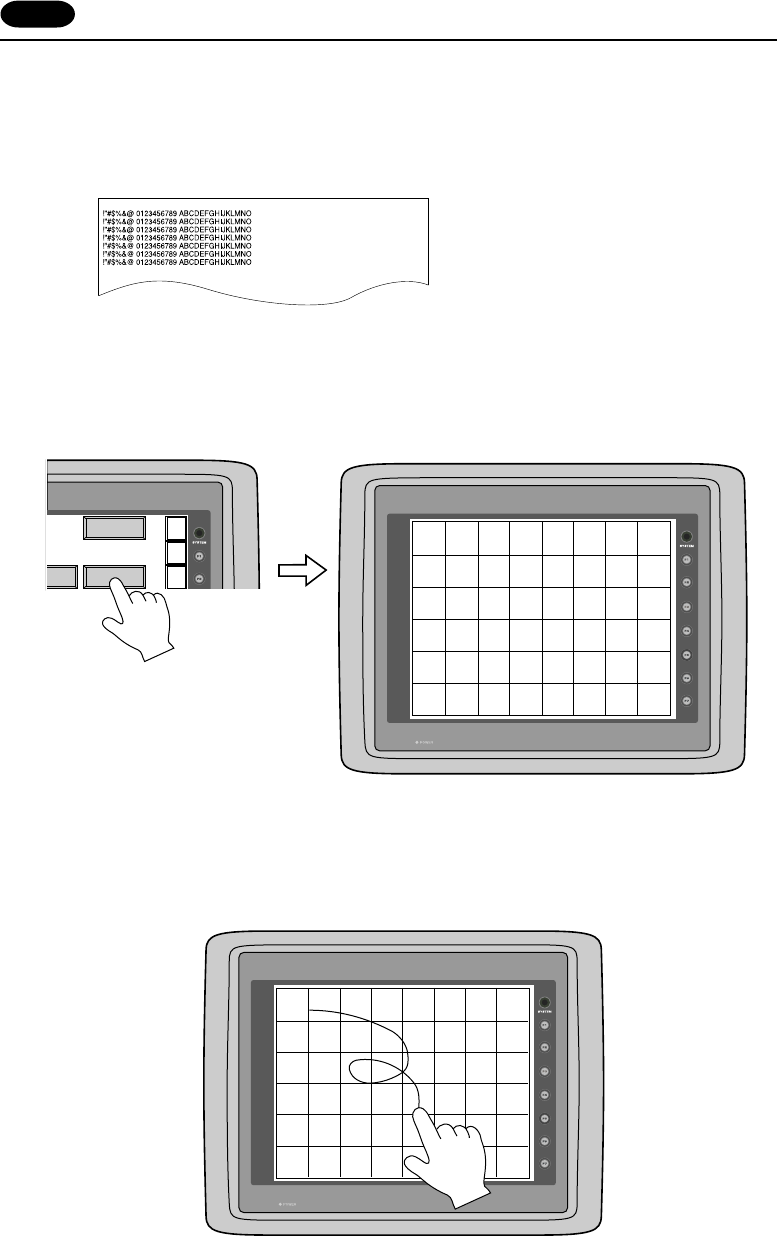

B. Printer Check
Check the signal for a printer.
The test is OK if the test printout is executed satisfactorily when connecting ZM-
**
to a printer and
pressing this [Printer Check] switch.
[Example]
C. Switch Check
Check the reaction of the touch switches on the ZM-
**
panel.
When the [Switch Check] switch is pressed, the following screen is displayed.
Confirm that the color of the pressed area changes into white.
The white color means that the switch reacts to the touch normally.
Pressing the [F4] switch leads to the previous [I/O Test] screen.
Pressing the [F5] switch deletes all the white dots.
SYS
F-1
F-2
Main Menu
Switch CheckCheck
The switch check screen is displayed.
Press the [Switch Check] switch.
X: Y:
Retu
Eras
X: Y:
Retu
Eras
1 Operation of ZM-
**
