A-103 Color Measurement Instruments

Sharp AR-C360P EFI Color Guide - 103

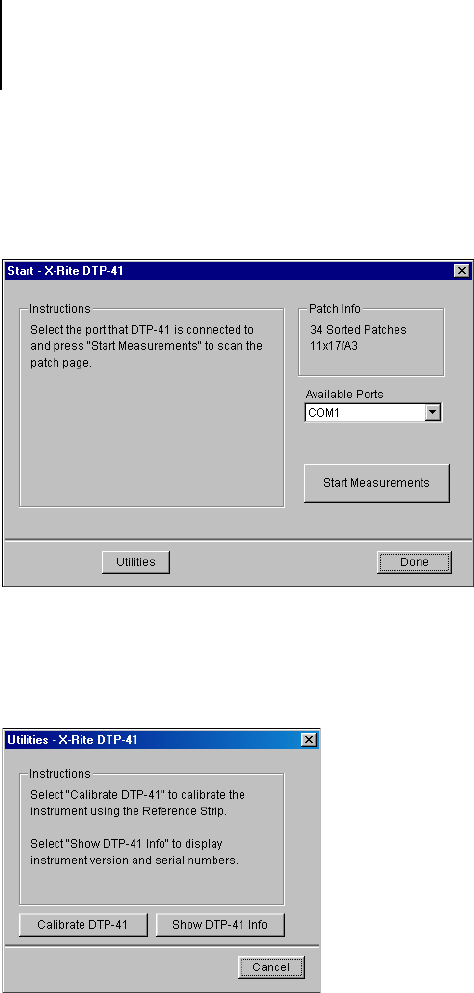

6. Choose the appropriate COM port for the DTP41 from the

Available Ports menu.

The Instructions area displays instructions for selecting the port.

7. Click Utilities.

The Utilities dialog box appears.

To view version and serial number information, click Show DTP-41

Info. When you are finished, click Done.

8. Click Calibrate DTP-41.

The Instrument Calibration dialog box appears.
