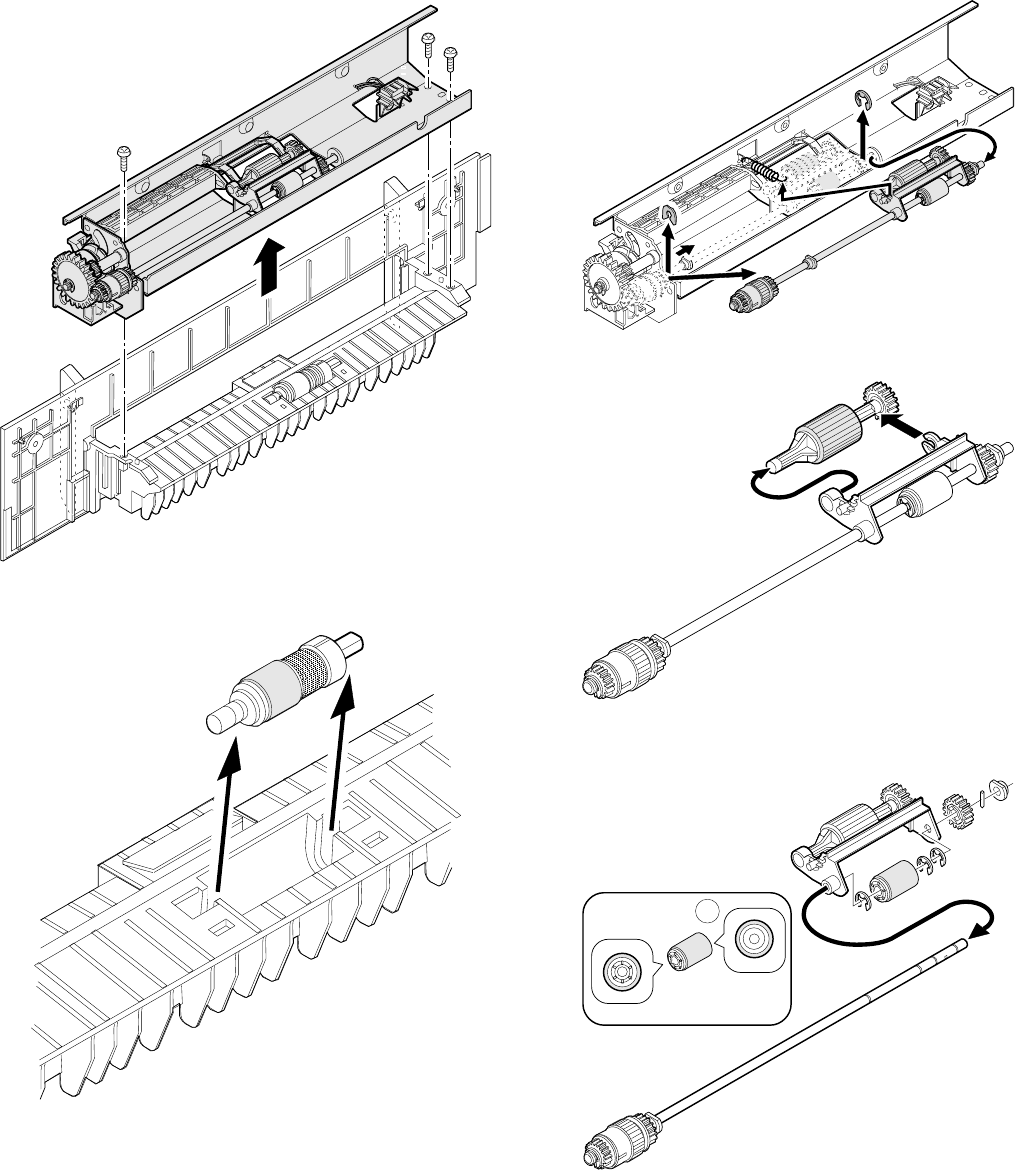

10. Multi paper feed unit
10-1. Separation roller
1 Remove three screws and remove the paper feed/take-up roller
ass’y.
2 Remove the separation roller.
@ When attaching the roller, engage the D-cut section with the
groove.
10-2. Take-up roller/paper feed roller
1 Remove the manual feed arm spring, the bearing stopper, and the
E-ring. (At this time, slide the bearing from the guide section in
advance.)
2 Lift the manual feed stopper, and remove the manual feed shaft
ass’y.
3 Remove the take-up roller.
4 Remove three E-rings, and remove the manual feed shaft. then
the paper feed roller will come off.
(Note for assembly)
The paper feed roller is provided with the one-way clutch, which must
be installed in the proper direction. Attach so that the side where
there is the one-way clutch (specified with "LOCK") is on the front
frame side.
A
6 – 24
