FINISHER (AR-FN5)

112

OPTIONAL EQUIPMENT

Misfeed removal

The copier will stop when a misfeed occurs. The message "Clear paper path." will appear along with a

display of paper misfeed locations. When a misfeed is indicated for the finisher, follow the procedure

below.

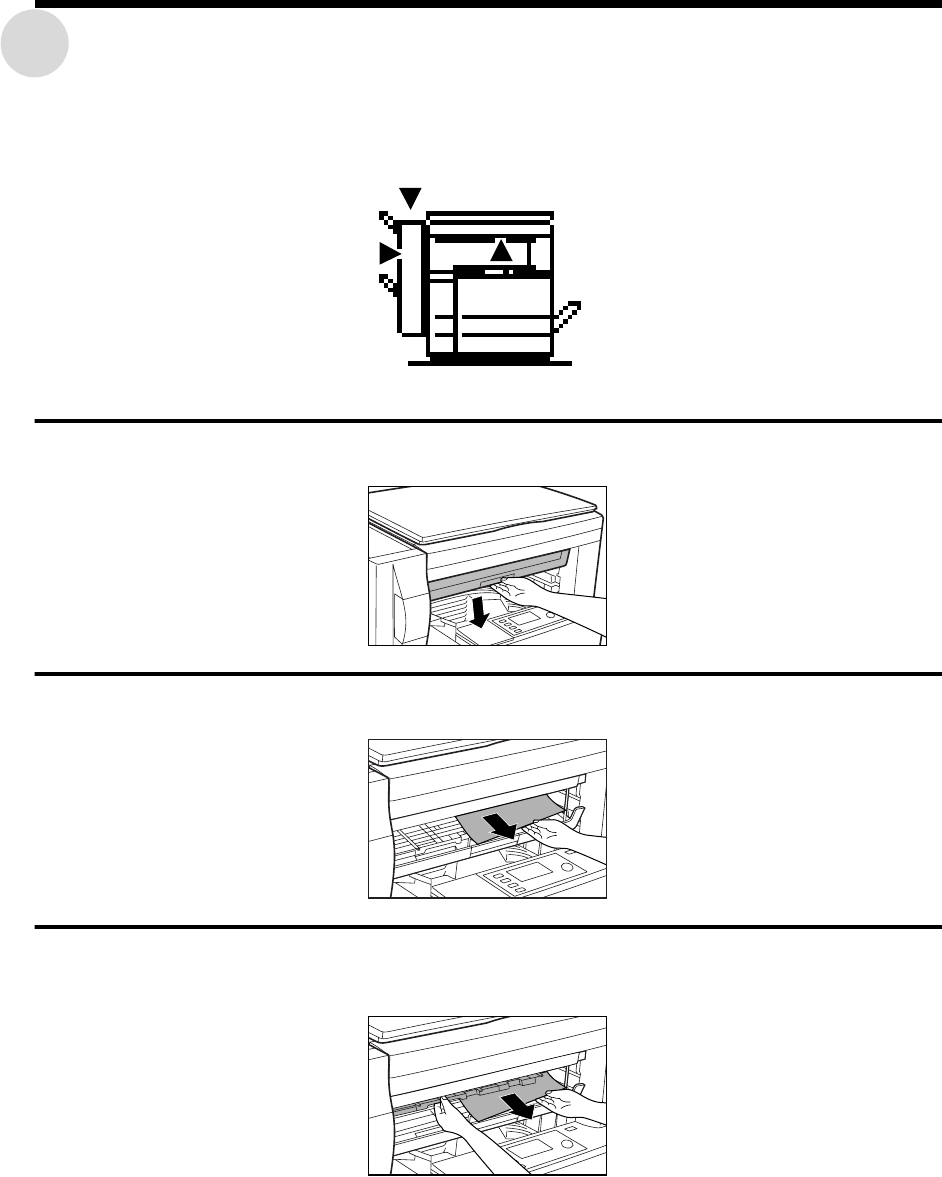

Pull the handle of the stapler compiler cover and open the cover.

Remove any misfed paper from the transport area.

If staple sort copying is being done, open the paper guide and remove

any misfed paper from the stapler compiler.
