ERASE

SPECIAL FUNCTIONS

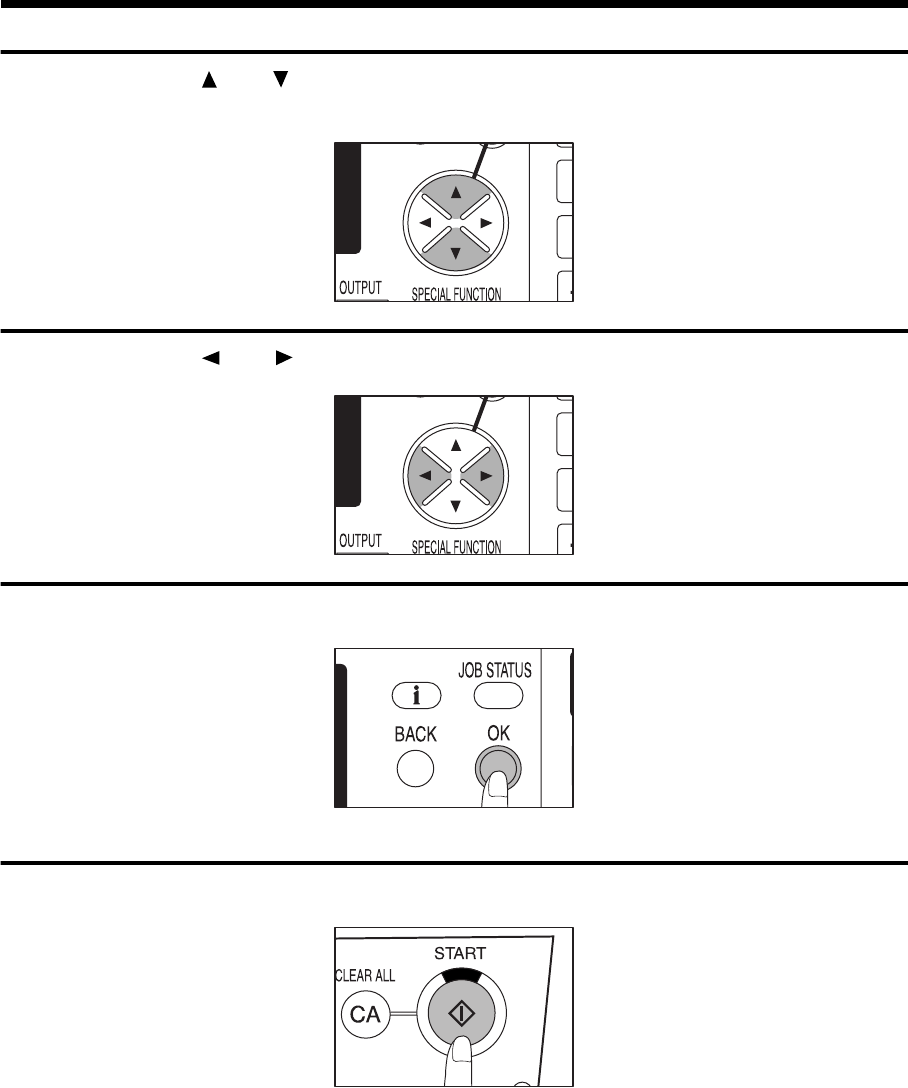

Use the and keys to select the desired erase mode.

●

Select "EDGE", "CENTER" or "EDGE + CENTER".

Use the and keys to adjust the amount of erase if needed.

Press the OK key.

●

The display will return to the basic screen.

Make all other desired copier selections and press the START key .

●

To cancel the erase feature, select the erase feature again and select "OFF".

00.book 48 ページ２００１年４月２０日金曜日午後９時３４分
