JOB MEMORY

SPECIAL FUNCTIONS

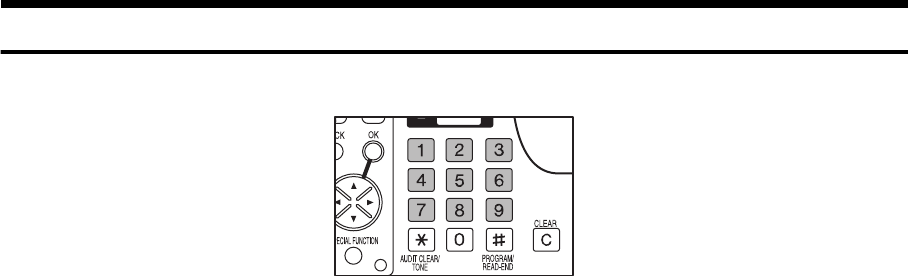

Select a program number from 1 to 9 using the numeric keys.

●

The numbers with a check mark are program numbers which contain job programs. If a

checked number is entered, the settings for that job program will be recalled and the

display will return to the basic screen.

●

The recalled settings may be modified for a particular job run, but any changes made will

not be stored in the job memory. To store the new settings, follow the "Storing a job

program" procedure.

00.book 64 ページ２００１年４月２０日金曜日午後９時３４分
