MISFEED REMOVAL
74
COPIER TROUBLE?
2

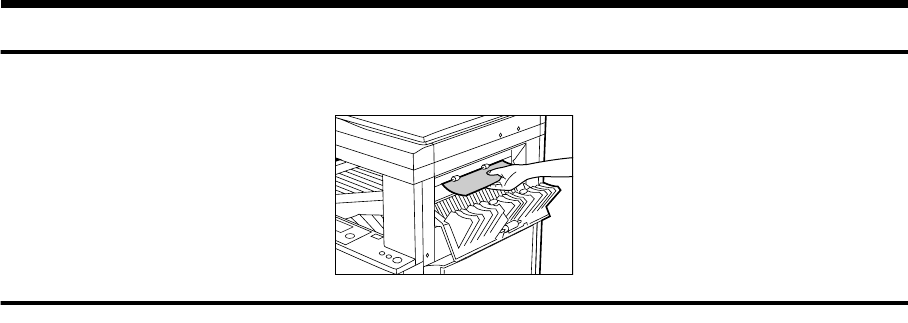

Gently pull the misfed paper out.
3
Close the upper exit area cover.
●
Confirm that the misfeed display has been cleared.
00.book 74 ページ ２００１年４月２０日 金曜日 午後９時３４分
