5-9

CHAPTER5

MISFEED REMOVAL

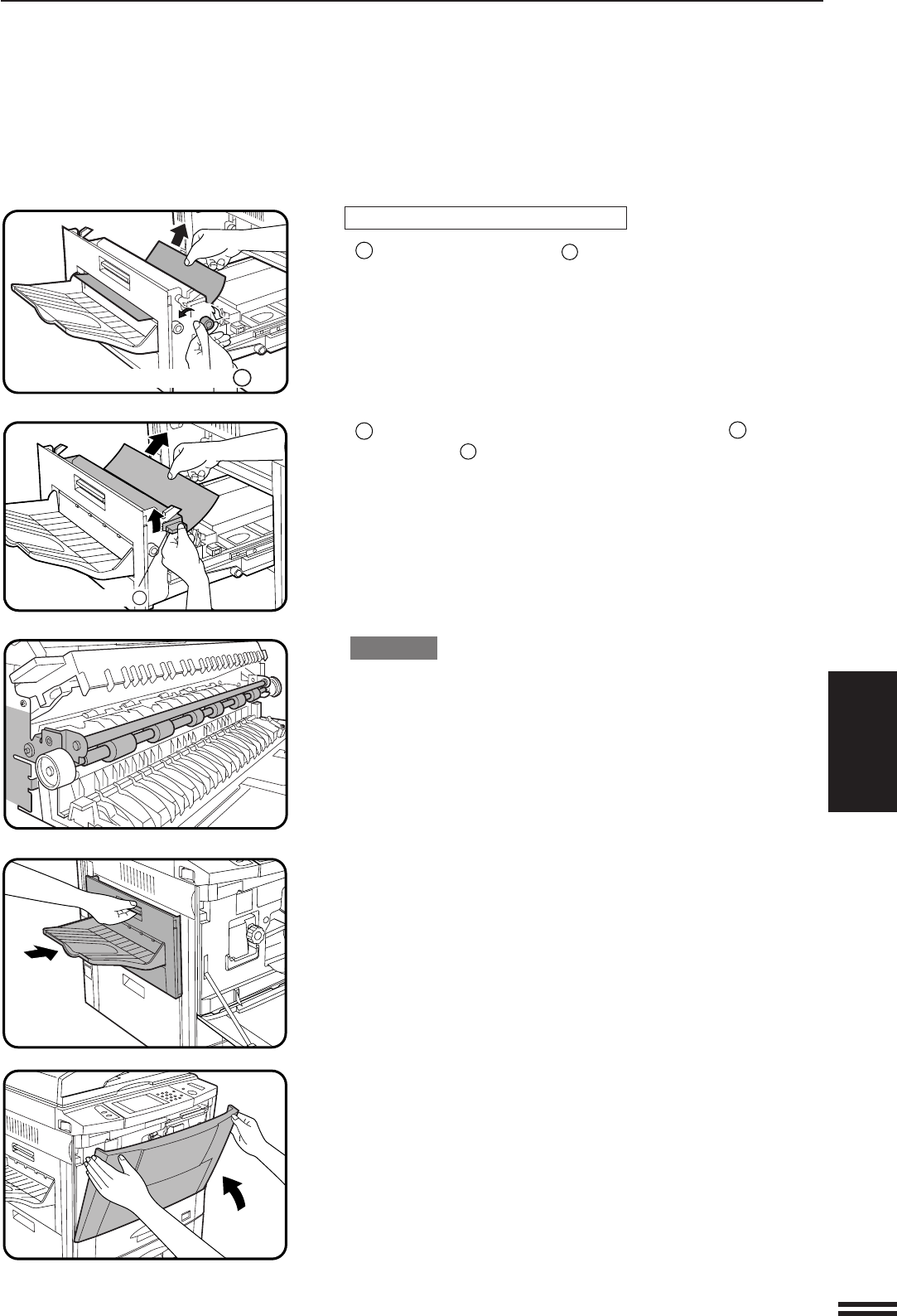

COPIER TROUBLE? Misfeed removal

If the misfed paper is in the exit area:

Turn roller rotating knob

and remove the paper.

If the misfed paper cannot be removed in step

, raise exit

area lever

and remove the paper.

CAUTION

The part of exit area shown in the illustration may be hot. Use

sufficient care not to touch it.

Close the exit area cover.

Close the front cover.

●

Confirm that the misfeed display is cleared.

Exit area lever

Roller rotating knob C
