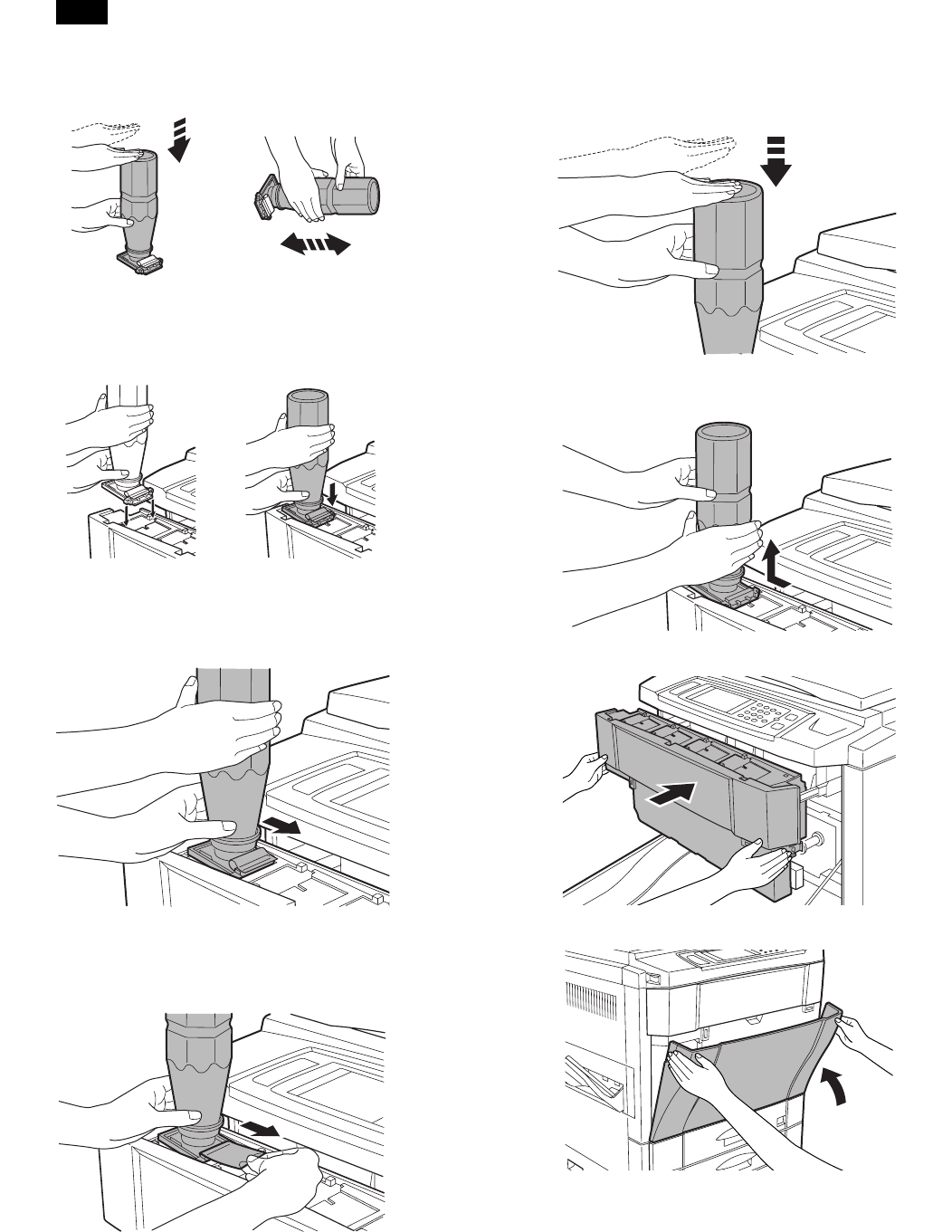

5) Tap the toner cartridge top 5 times, and shake it horizontally 20

times.

6) Attach the toner cartridge to the toner box to be refilled.

(Example) When refilling yellow toner:

Securely insert two projections of the toner cartridge into

the toner supply port.

Be sure to check the color.

The toner cartridge must be attached to the toner supply port of

the same color.

7) Move the toner cartridge in the arrow direction until it stops.

8) Remove the seal.

9) Hold the toner cartridge and remove the seal.

10) It takes about 40 sec to supply toner in the toner cartridge to the

toner box.

11) Tap the toner cartridge top several times.

12) Drop the toner attached to the inside of the toner cartridge com-

pletely.

13) Move the empty toner cartridge in the arrow direction and

remove it.

14) Insert the toner box into the original position.

15) Close the front cover.

5 times

20 times

AR-C150

4 – 11
