5) Check the deflection cycle of 125.6mm pitch of four printed pat-

terns (C, M, Y). Use the output pattern of the smallest deflection

as the set value of each color, and set it to item B, C, and D. (After

entering the adjustment value, press the OK key.)

6) After entering the adjustment value, enter "3" to set item A with

the 10-key and press the [EXECUTE] key to print the adjustment

pattern again.

If the above procedures cannot bring a satisfactory result, select

mode 1 and print twelve pages of the print pattern.

This allows to make more detailed checks and adjustments.

The adjustment procedure is the same as procedure 5).

It, however, takes about 6 min to do this procedure.

NOTE: If there is an extra deflection other than the drum frequency

(125.6mm pitch), check the set values of the PS motor, the

belt motor, and the fusing motor speed.

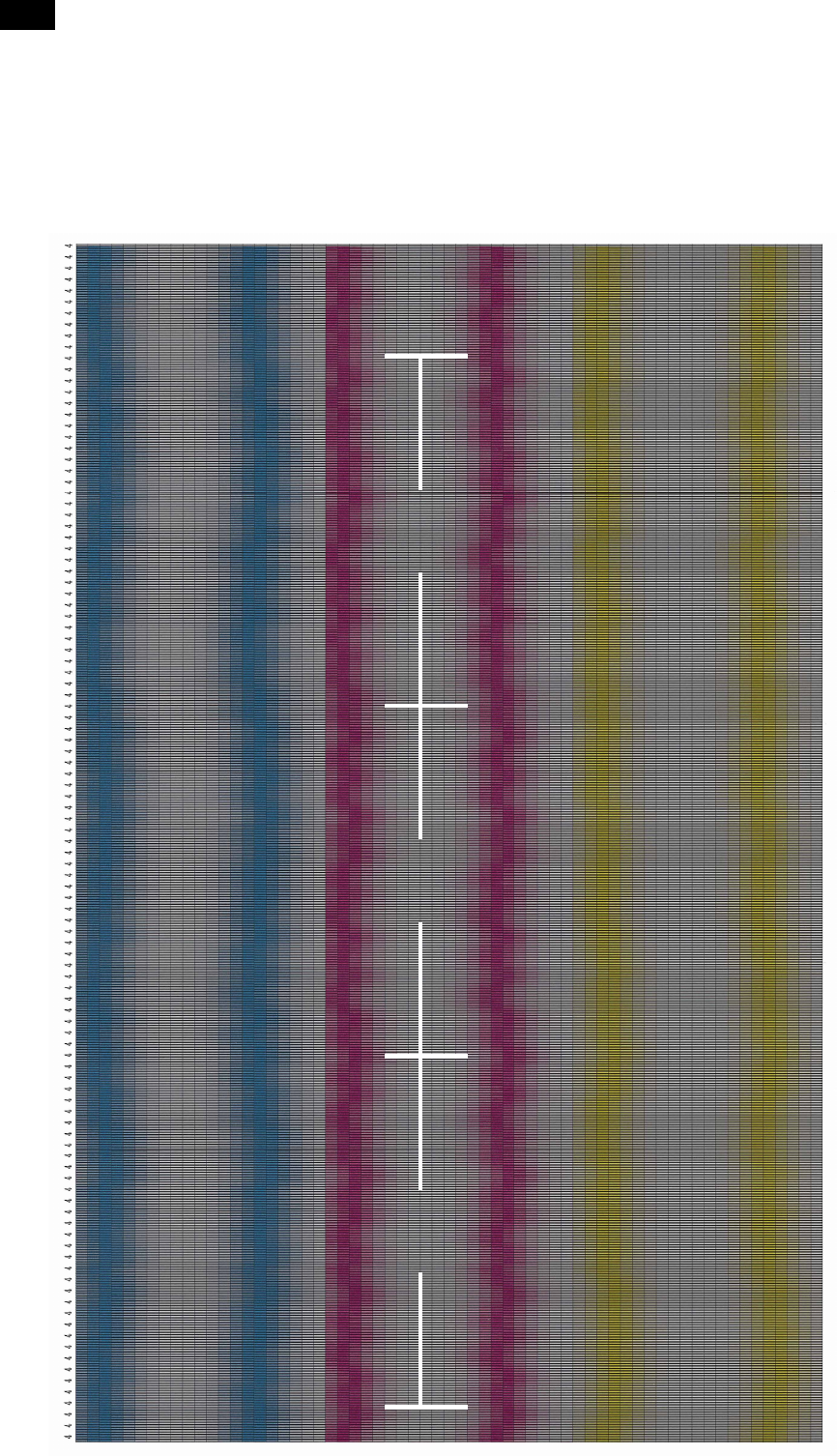

125mm 125mm 125mm

Check the feflection of 125mm pitch.

AR-C150

7 – 9
