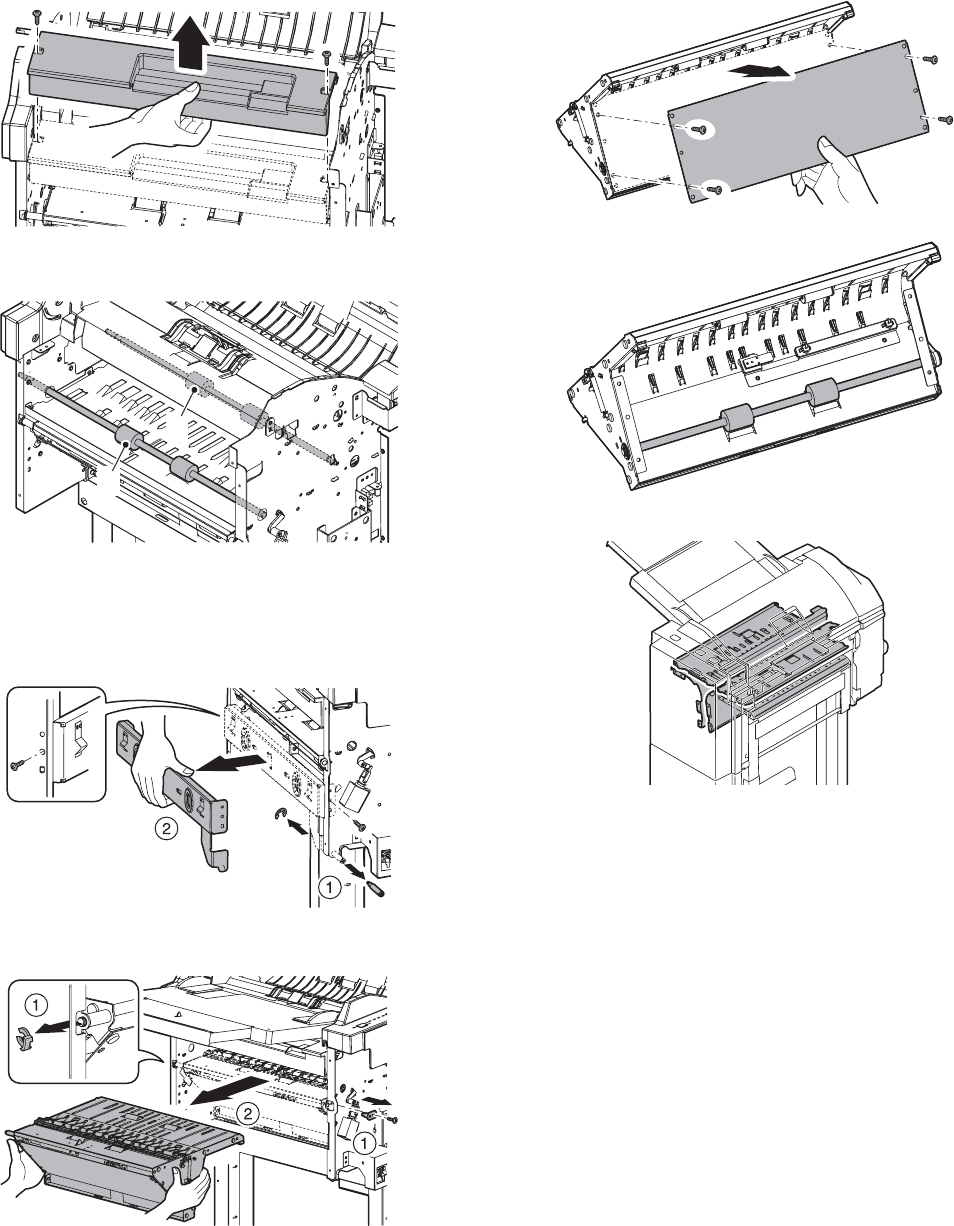

AR-CF2 DISASSEMBLY AND ASSEMBLY 5 - 3

5) Remove the finisher latch cover.

A: Horizontal pass roller 2

B: Timing roller

C. Reverse Roller

1) Open the top cover.

2) Remove the front cover and rear cover.

3) Remove the finisher fixing bolt to remove the finisher positioning

stay unit.

4) Remove the reverse supports and plastic E-rings to remove the

reverse unit.

5) Remove the cover bracket.

D. Paper Guide
