Marker settings

BVM-E and BVM-F Series monitors can display various markers, including an aspect

marker, safe area marker, and center marker. In addition to this flexible selection of

marker types, detailed display settings of each marker are offered. For example, the

color, brightness, horizontal/vertical position, and width of aspect markers can all be

controlled, while the height and width of safe area markers can be adjusted.

Marker Variation

Safe Area Marker

Aspect Marker*

% Dot (Pixel)

Selectable Markers

80%, 88%, 90%, 93%, or variable Flexible

16:9, 15:9, 14:9, 13:9, 4:3, 2.39:1, 2.35:1, 1.896:1,

1.85:1, or 1.66:1

Line Colors White, Red, Green, Blue, Yellow, Cyan, or Magenta

Line Width 1 to 5 dots (factory preset at 2 dots)

Line Luminance High (bright) or Low (dark)

Blanking

—

Off: Blanking is released

Black: Blanking

Half: Half blanking

* The BVM-F Series monitors support Aspect Markers of 16:9 and 4:3 only.

Aspect Mode: 2.35:1,

Safe Area: Shape A,

Area Size: 80%

Aspect Mode: 14:9,

Safe Area: Shape B,

Area Size: 80%

Aspect Mode: 4:3,

Safe Area: Shape C,

Area Size: 80%

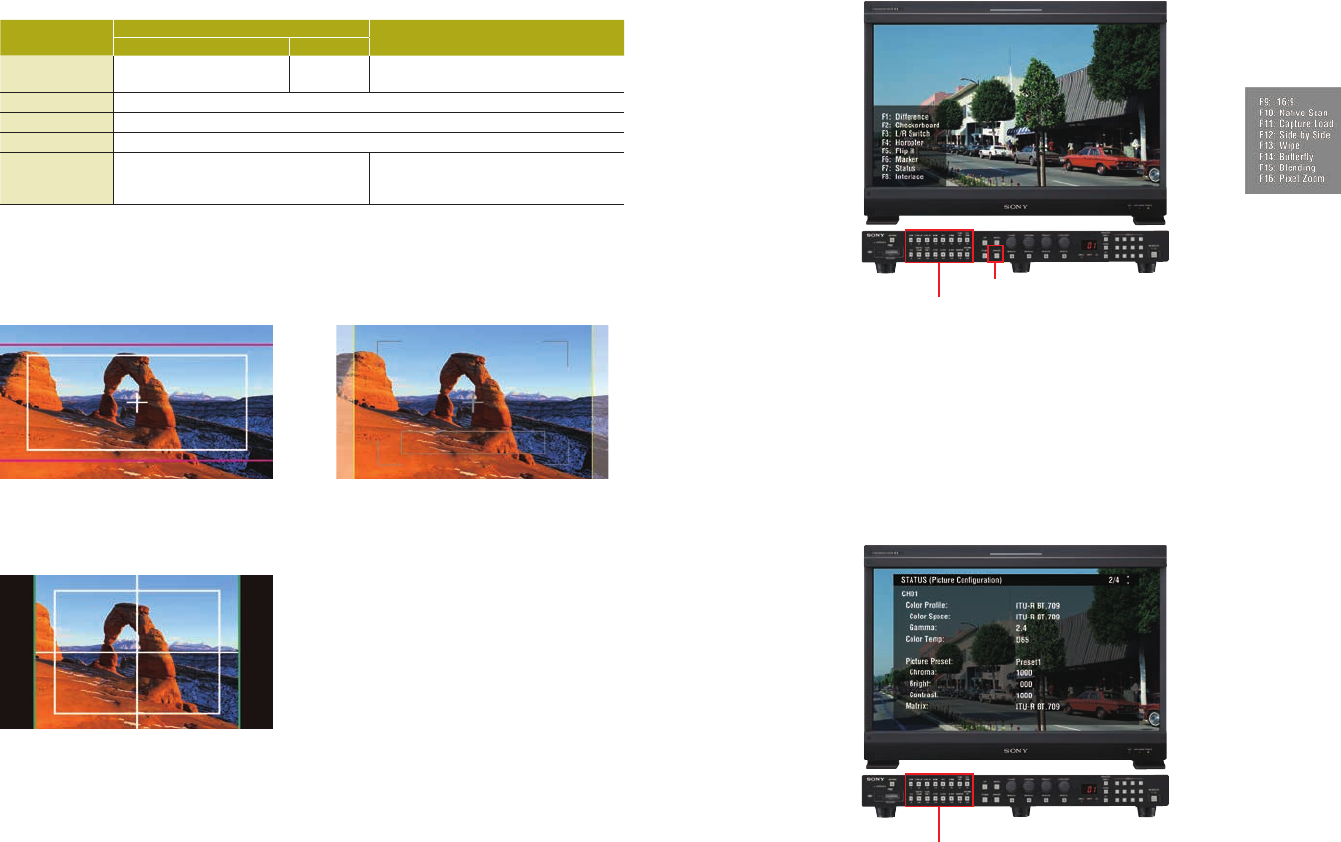

Marker Examples

*Screen image is simulated

Wide Variety of Functions

The user has a wide variety of over 40 functions to choose from.

Each of these can be assigned to any of the 16 function buttons (F1 to F16) on the

BKM-16R* controller.

Press ENTER to display the F1 to F8 (or F9 to F16) button assignment on screen.

* Requires the latest version of the BKM-16R with a product code suffix /7 or later.

Status Display

Simply assign STATUS to one of the function buttons (F1 to F16) on the BKM-16R*

controller.

The user can instantly grasp the whole monitor status and configurations without

having to search through menus.

* Requires the latest version of the BKM-16R with a product code suffix /7 or later.

F1 to F16 function buttons

ENTER button

(The next Function display)
