Lightweight Compact Design and Versatility for a Wide

Range of User Applications

Flexible Mounting For Picture Monitoring

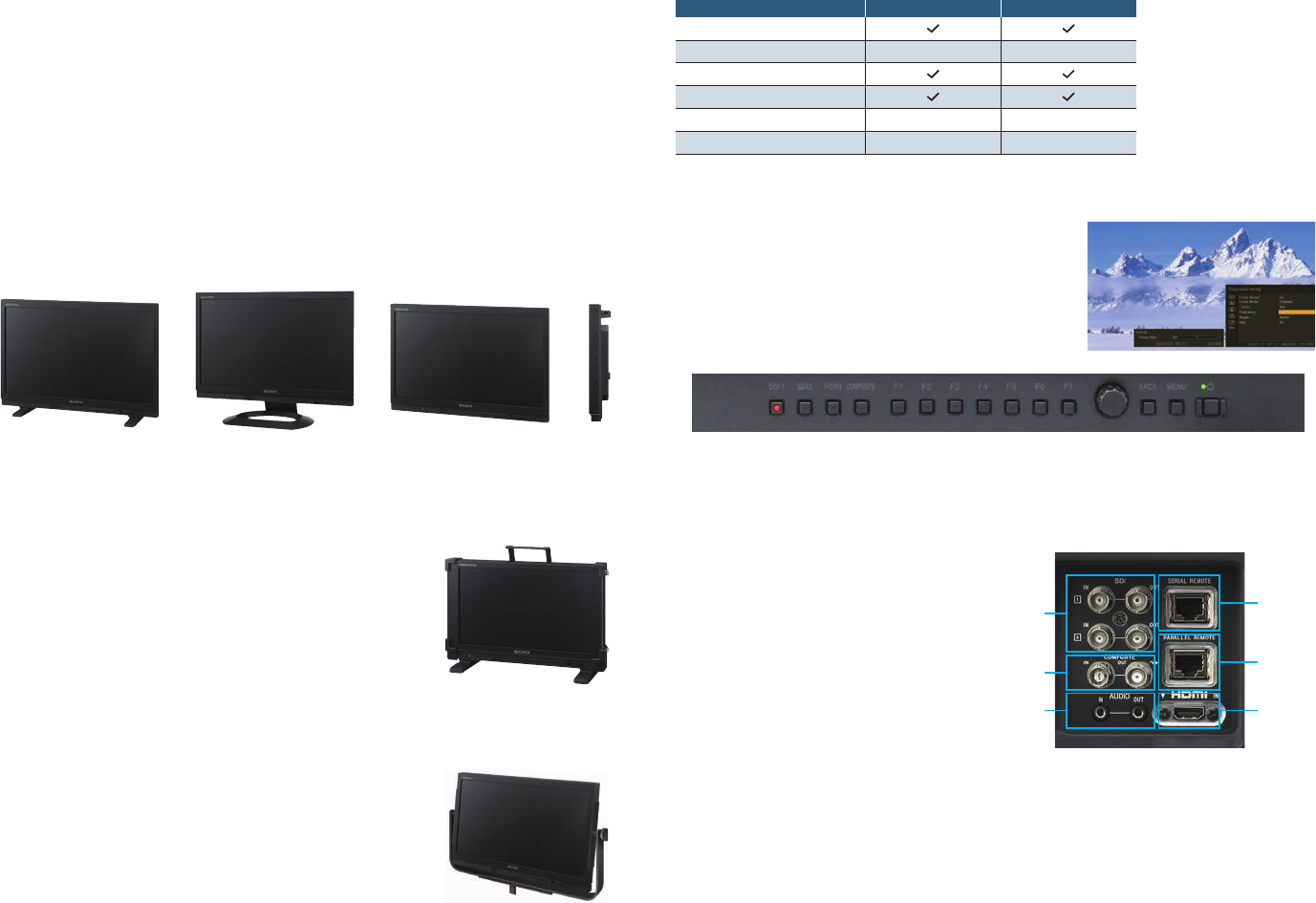

PVM-A250 and PVM-A170 monitors incorporate a lightweight, compact body. Their

design offers flexibility, and can be adapted according to the application: a desktop

unit with standard table feet, or used with an optional SU-561 stand, or without the

stand for wall applications. These monitors support VESA mounting with a 100-mm

pitch, and EIA 19-inch standard racks.* This allows the monitors to be used for all

types of application – desktop editing, office viewing, used on a studio monitor wall, or

installed in OB vans.

SDI (3G/HD/SD)

Input (x2)

Output (x2)

Composite

Input / Output

Audio

Input / Output

Serial

remote

Parallel

remote

HDMI IN

PVM-A250 standard PVM-A250

with optional SU-561

Optional Protection Kit

This accessory provides an AR-coated protection

panel for the PVM-A250 and PVM-A170 monitor, along

with corner bumpers to safeguard the monitor from

scratches and impact. The benefit of this is significant

when renting out these monitors – for example, panel

damage is reduced and there is a far lower incidence

of panel replacement and downtime during rental

cycles.

Yoke-mount and VESA-mount Capability

PVM-A250 and PVM-A170 monitors have screw holes

on their side bezels for yoke mounting. This type of

mounting is convenient when installing a monitor

to a camera crane or monitor stand. There are also

VESA-mount 100-mm pitch holes on each monitor’s

rear panel.

PVM-A250

with yoke-mount image

(3rd vendor yoke mount is required)

PVM-A170

with protection kit image

Input Versatility

PVM-A Series monitors are

equipped with built in standard

input interfaces: 3G/HD/SD-SDI

(x2), HDMI (HDCP) input (x1),

and composite (x1). These

monitors*

support dual-link

HD-SDI to accept up to 1920 x

1080/50p, 60p signals.*

They

also support 2048 x 1080/50p,

60p signals.*

*1 The PVM-741 does not support dual-link

HD-SDI and 2048 signals.

*2 Supported with V1.1.

User-friendly Operability and UI

A rotary-type switch and seven function-assignable

buttons allow users quick and intuitive operation.

Operation buttons with LED indicators enable error-

free operation, even in dark environments.*

* LED lights can be switched on/off.

Front control panel

Optimized Low-latency I/P Conversion*

The I/P conversion system delivers automatically optimized signal processing

according to input signals with low-latency (less than 0.5 field). This system helps users

to edit and monitor for a live production.

* PVM-A250 and PVM-A170 only. PVM-741 is equipped with selectable four I/P modes.

PVM-A250 PVM-A170

Standard monitor feet

Optional monitor stand SU-561 SU-561

VESA mounting (100 x 100 mm)

Yoke mounting*

Rack mount (optional) MB-L22 MB-P17

Protection kit (optional) BKM-PP25 BKM-PP17

* 3rd vendor yoke mount is required.

PVM-A250 without stand
