IBX-530B-270 Embedded System

Page 33

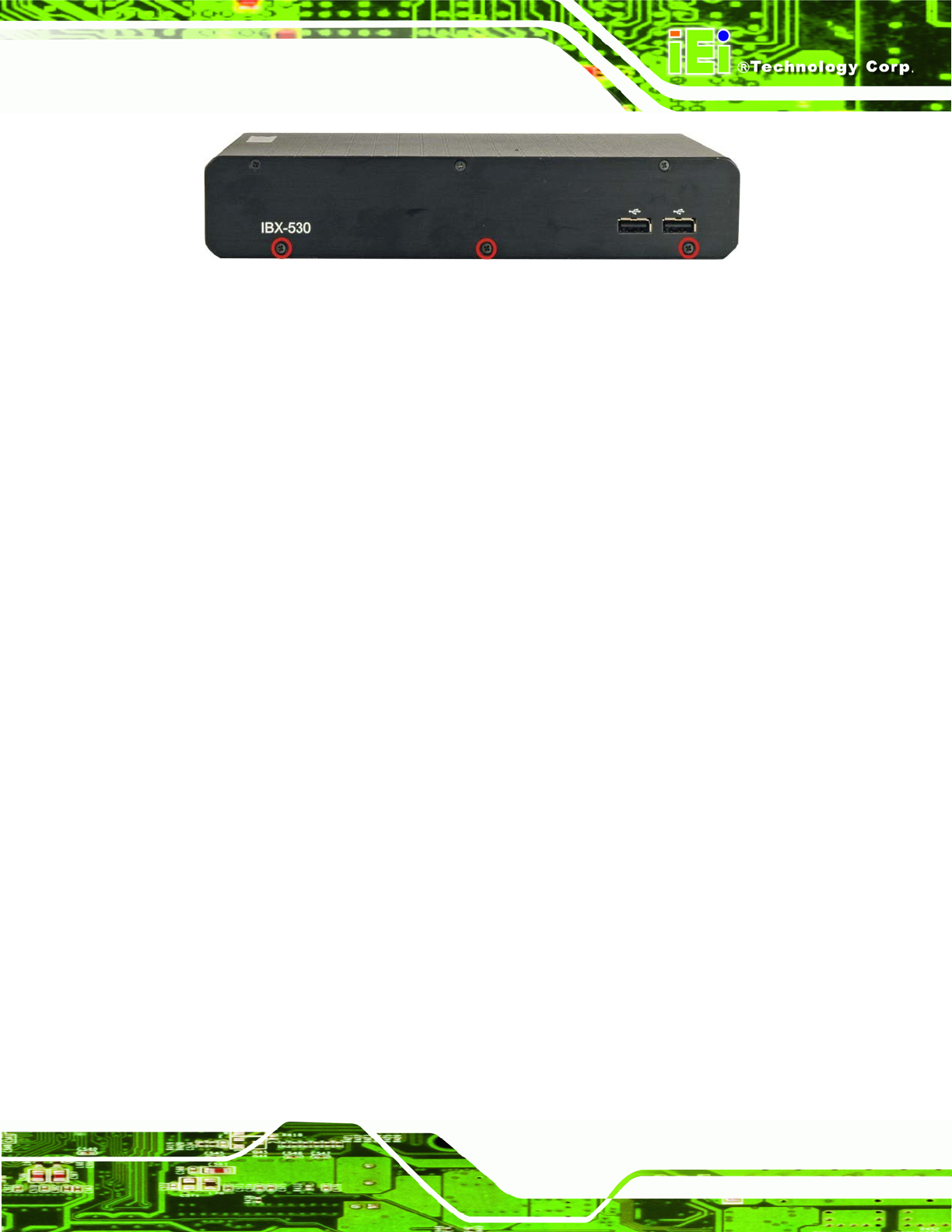

Figure 4-2: Bottom Cover Retention Screws (Rear Panel)

Step 3: Gently remove the bottom cover from the IBX-530B-N270. Step 0:

4.2.4 Configure the Jumper Settings

To configure the jumper settings, please follow the steps below.

Step 1: Remove the bottom cover. See Section

4.2.3.

Step 2: Locate the jumper settings on the embedded motherboard. See Section

3.5.

Step 3: Make the jumper settings in accordance with the settings described and defined

in Section

3.5.

4.2.5 CompactFlash® Card Installation

The IBX-530B-N270 embedded system has one CF slot on left side panel. To install the

CF card, follow the instructions below.

Step 1: Locate the CF card slot rubber cover on the left side panel.

Step 2: Remove CF card slot rubber cover.

Step 3: Insert the CF card into the slot. (

Figure 4-3).
