IBX-530B-270 Embedded System

Page 48

The CPU Configuration menu (BIOS Menu 3) lists the following CPU details:

 Manufacturer: Lists the name of the CPU manufacturer

 Brand String: Lists the brand name of the CPU being used

 Frequency: Lists the CPU processing speed

 FSB Speed: Lists the FSB speed

 Cache L1: Lists the CPU L1 cache size

 Cache L2: Lists the CPU L2 cache size

5.3.2 IDE Configuration

Use the IDE Configuration menu (5BIOS Menu 4) to change and/or set the configuration

of the IDE devices installed in the system.

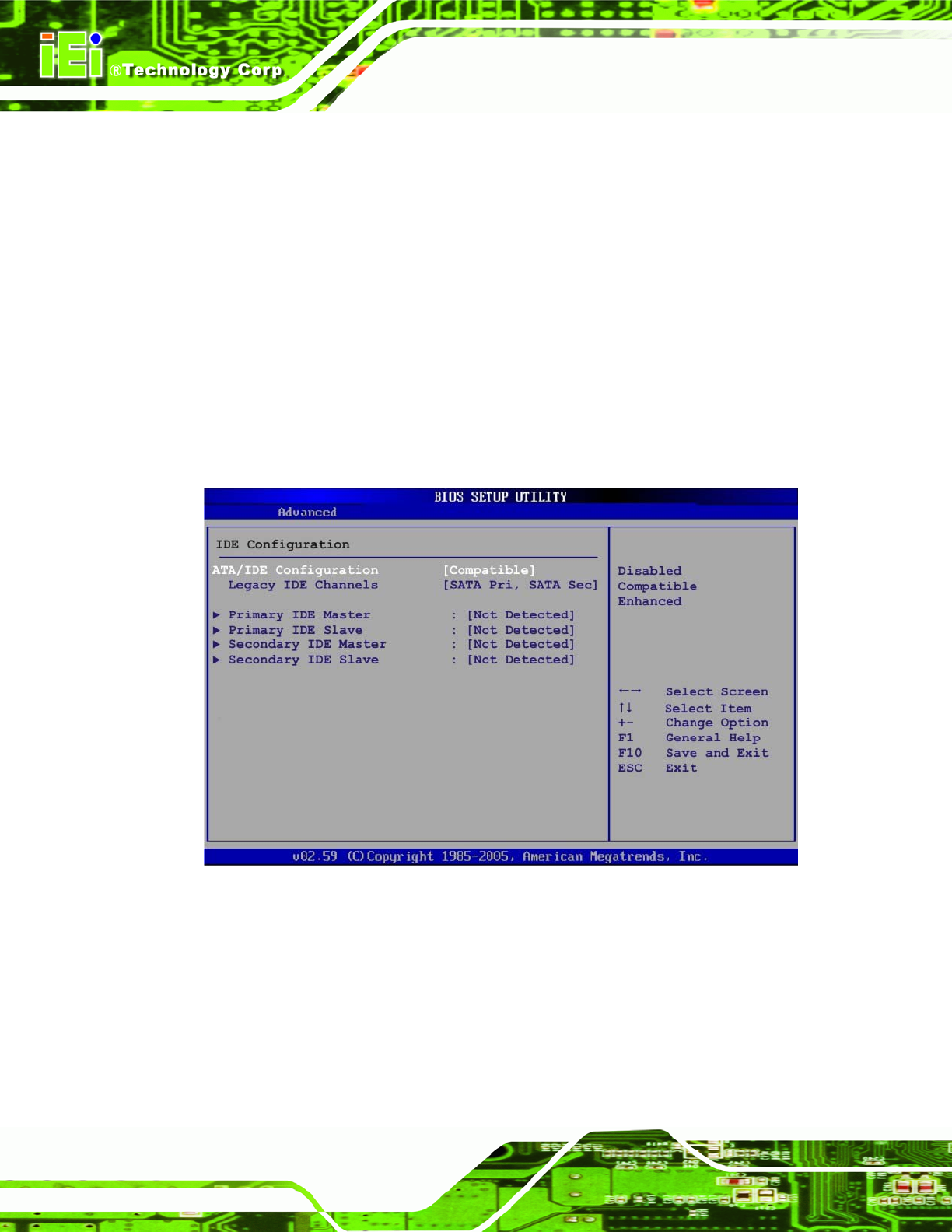

BIOS Menu 4: IDE Configuration

 ATA/IDE Configurations [Compatible]

Use the ATA/IDE Configurations option to configure the ATA/IDE controller.



Disabled

Disables the on-board ATA/IDE controller.



Compatible D

EFAULT

Configures the on-board ATA/IDE controller to be in
